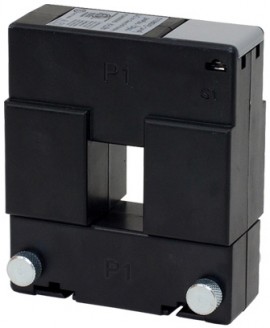

Split core current transformer features a window size of 0.83 x 1.22", current input of 300 A and output of 5 A.
Split core current transformer features a window size of 0.83 x 1.22", current input of 300 A and output of 5 A.
Designed for industrial standard and high accuracy use, these current transformers are ideal for easy installation without disconnecting cables.
Features
| Input Ranges | 5A to 300A |
| Rated Output Options | 5A |
| Window Size | 0.83 x 1.22" (21 x 31mm) |
| Exterior Dimensions | 3.5 x 4.13 x 1.57" (89 x 105 x 40mm) |
| Accuracy | 1% |
| Standard/Certifications | UR, CE, RoHS |
| Form Factor | Rectangle Split Core |
| Input Ranges | 5A to 300A |
| Rated Output Options | 5A |
| Window Size | 0.83 x 1.22" (21 x 31mm) |
| Exterior Dimensions | 3.5 x 4.13 x 1.57" (89 x 105 x 40mm) |
| Accuracy | 1% |
| Standard/Certifications | UR, CE, RoHS |
| Form Factor | Rectangle Split Core |
