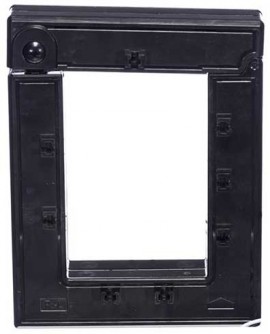

Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Model: AcuCT-4161R-1200:5A

Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A-

Downloads:

More Accuenergy Products

Ask an Expert

Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Model: AcuCT-4161R-1200:5A

Revenue grade, split-core current transformer features a window size of 4.1 x 6.1", current input of 1200 A and output of 5 A.

Revenue grade, split-core current transformer features a window size of 4.1 x 6.1", current input of 1200 A and output of 5 A.

Sale Price $220.80 USD
Regular Price $240.00 USD
Availability 2 to 3 Weeks
Quantity

Accuenergy AcuCT 4161R Series Offers

Designed to be compact, simple and durable, these current transformers offer the highest accuracy while supporting the widest range of rated outputs.

Features

  • Up to 5000A AC current input range
  • Multiple output options including 5A, 1A, 80mA, 100mA, 200mA, 333mV
  • Sturdy latch locks the CT in place using a press-open mechanism for quick installation without disconnecting cables
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Multiple mounting options with included accessories

Accuenergy AcuCT-4161R-1200:5A Specifications

Input Range 5A to 1200A
Output Option 5A
Window Size 4.1 x 6.1" (105 x 155mm)
Exterior Dimensions 7.3 x 9.3 x 1.8" (185 x 235 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-4161R-1200:5A

What's included with the Accuenergy AcuCT-4161R-1200:5A

  • Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Ask a question about Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Customer Reviews for the Accuenergy AcuCT-4161R-1200:5A

Accuenergy AcuCT 4161R Series Offers

Designed to be compact, simple and durable, these current transformers offer the highest accuracy while supporting the widest range of rated outputs.

Features

  • Up to 5000A AC current input range
  • Multiple output options including 5A, 1A, 80mA, 100mA, 200mA, 333mV
  • Sturdy latch locks the CT in place using a press-open mechanism for quick installation without disconnecting cables
  • Can be installed on cable, bus and panel
  • Listed to UL2808, 61010-1 and CSA 22.2
  • Revenue grade accuracy meets IEC61000-1 class 0.5
  • Multiple mounting options with included accessories
Show More...

Accuenergy AcuCT-4161R-1200:5A Specifications

Input Range 5A to 1200A
Output Option 5A
Window Size 4.1 x 6.1" (105 x 155mm)
Exterior Dimensions 7.3 x 9.3 x 1.8" (185 x 235 x 45mm)
Accuracy  IEC 60044-1 0.5s class
Standard/Certifications UL listed UL2808, 61010-1 and CSA 22.2
Form Factor Rectangle Press-Open CTs
Click here for complete specifications on the Accuenergy AcuCT-4161R-1200:5A

What's included with the Accuenergy AcuCT-4161R-1200:5A

  • Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Ask a question about Accuenergy AcuCT-4161R-1200:5A Split Core Current Transformer, 4.1 x 6.1", 1200 A:5 A

Customer Reviews for the Accuenergy AcuCT-4161R-1200:5A
