Additel 226 Series Multifunction Process Calibrator, -150 mV to 15 V DC, 0 to 25 mA, 0.015% RDG, standard

Model: ADT226

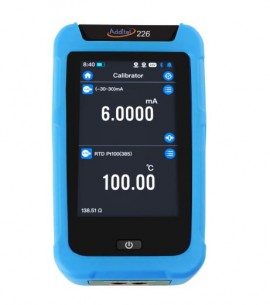

Additel 226 Series Multifunction Process Calibrator, -150 mV to 15 V DC, 0 to 25 mA, 0.015% RDG, standard-

Downloads: datasheet manual

More Additel Products

Ask an Expert

Additel 226 Series Multifunction Process Calibrator, -150 mV to 15 V DC, 0 to 25 mA, 0.015% RDG, standard

Model: ADT226

This is a powerful multifunction process calibrator with a range of -150 mV to 150 V DC and 0 to 25 mA current DC. It has an accuracy of 0.015% RDG.

This is a powerful multifunction process calibrator with a range of -150 mV to 150 V DC and 0 to 25 mA current DC. It has an accuracy of 0.015% RDG.

Your Price $4253.00 USD
Availability 2 to 3 Weeks
Quantity

Additel ADT226 Offers

Additel’s new Multi-functional Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. The ADT226 is a powerful yet cost effective process calibrator, which has an ATEX certified intrinsically safe option - ADT226Ex allowing you to perform calibration work in the harshest of environments. We’re confident these new tools will not only meet your calibration requirements but will make metrology simple for you!

Features

  • Sourcing, simulating and measuring pressure, temperature and electrical signals
  • Built-in barometer
  • Large smartphone like touchscreen user experience
  • USB Type-C and bluetooth communications
  • IP67 rated
  • High voltage measurement capability (300V AC)
  • True RMS voltage meter capability
  • Dual channel pressure module ports
  • High static differential pressure measurement 0.002% FS
  • ISO 17025-accredited calibration w/data included

Additel ADT226 Specifications

Electrical
Voltage DC Range: -150 to 150 mV; Resolution: 5 uV; Accuracy: 0.015%RDG + 15 uV
Range: -1.5 to 1.5 V; Resolution: 0.05 mV; Accuracy: 0.015%RDG + 0.15 mV
Range: -15 to 15 V; Resolution: 0.5 mV; Accuracy: 0.015%RDG + 1.5 mV
Current DC Range: 0 to 25 mA; Resolution: 0.5 uA; Accuracy: 0.015%RDG + 1.2 uA
Resistance Range: 0 to 400 Ω; Resolution: 10 mΩ; Accuracy: 0.015%RDG + 20 mΩ
Range: 0 to 4000 Ω; Resolution: 100 mΩ; Accuracy: 0.015%RDG + 200 mΩ
Frequency (Square wave) Range: (0.01 ~ 5) Hz; Resolution: 0.00001 Hz; Accuracy: 0.005%RDG + 0.00005 Hz
Range: (5 ~ 50) Hz; Resolution: 0.0001 Hz; Accuracy: 0.005%RDG + 0.0005 Hz
Range: (50 ~ 500) Hz; Resolution: 0.001 Hz; Accuracy: 0.005%RDG + 0.005 Hz
Range: (500 ~ 5000) Hz; Resolution: 0.01 Hz; Accuracy: 0.005%RDG + 0.05 Hz
Range: (5000 ~ 50000) Hz; Resolution: 0.1 Hz; Accuracy: 0.005%RDG + 0.5 Hz
Frequency (Sine wave & Triangular wave) Range: (0.1 ~ 50) Hz; Resolution: 0.001 Hz; Accuracy: 0.004 Hz
Range: (50 ~ 500) Hz; Resolution: 0.01 Hz; Accuracy: 0.04 Hz
Range: (500 ~ 5000) Hz; Resolution: 0.1 Hz; Accuracy: 0.4 Hz
Range: (5000 ~ 50000) Hz; Resolution: 1 Hz; Accuracy: 4 Hz
Duty Cycle Range: (1%~99%) at ≤10000Hz; Resolution: 0.05%; Accuracy: 0.1%/kHz + 0.1%
Range: (5%~99%) at ≤50000Hz; Resolution: 0.5%; Accuracy: 0.1%/kHz + 0.1%
Voltage mV (TC) Range: -10 to 75 mV; Resolution: 1.5 uV; Accuracy: 0.015%RDG + 4.0 uV
Pulse Range: 0 to 9999999; Resolution: 1; Accuracy: N/A
Pulse (notes) Optional rising edge and falling edge; minimum threshold voltage: 2.5V
Loop power (max 25mA) Range: 24 V; Resolution: N/A; Accuracy: ±1 V
General
Operating Temperature 14 to 122°F (-10 to 50°C)
Specification guaranteed temperature range 50 to 86°F (10 to 30°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Humidity <95%, non-condensing
Power supply 6600mAh, 23.8Wh lithium battery, charging time about 6 hours, battery pack can be charged independently
User interface Icon driven menus
Ports protection voltage 50V max (Only for the top ports)
Display 5.0" (12.7 cm) 18.9 x 31.5" (480 x 800 mm) TFT LCD capacitive screen
Maximum altitude 9843' (3000 m)
European Compliance CE Mark
Electrical Connection Ø4mm sockets and flat mini-jack thermocouple socket
Battery Rechargeable Li-ion battery (included)
Battery Life Typically 12 hours
Battery Charge 110V/220V external power adapter included. Battery can be charged external to the unit
External pressure module Dual channel Serial plug, can connect two digital pressure modules
Warm-up time Full specification performance is achieved after a 10 minute warm-up time
ROHS compliant Rohs II Directive 2011/65/EU, EN50581:2012
Display rate 3 readings per second
Barometric Accuracy (Built-in barometer) 0.0080 psi (55 Pa)
IP protection level IP67, 3.28' (1 m) drop test
Communication Isolated USB-TYPEC (slave), Bluetooth BLE
User Interface Localization English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, Russian, Czech, Slovak
Calibration ISO 17025 accredited calibration with data
Warranty 3 years
Dimensions 6.97 x 4.13 x 2.04" (177 x 105 x 52 mm)
Weight 1.6 lbs (0.7 kg)
Click here for complete specifications on the Additel ADT226

What's included with the Additel ADT226

  • Multifunction Process Calibrator
  • ISO 17025-Accredited Calibration Certificate
  • 6 x Test Leads
  • 2 x Right Angle Test Leads
  • Pressure Module Connection Cable
  • USB Cable Type A to Type C
  • Hanging Strap with Magnet
  • 2 x Test Hooks
  • 2 x Small Test Hooks
  • Rechargeable Li-ion Battery
  • 110/220 V Power Adapter
  • Three-Year Warranty
