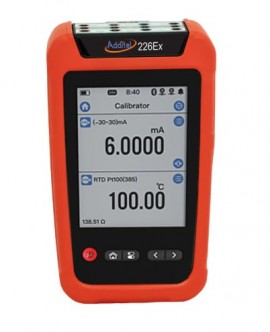

This is a powerful multifunction process calibrator with a range of 0 to 10.5 V DC and 0 to 25 mA current DC. It has an accuracy of 0.02% RDG and is ATEX certified.
This is a powerful multifunction process calibrator with a range of 0 to 10.5 V DC and 0 to 25 mA current DC. It has an accuracy of 0.02% RDG and is ATEX certified.
Additel’s new Multi-functional Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. The ADT226 is a powerful yet cost effective process calibrator, which has an ATEX certified intrinsically safe option - ADT226Ex allowing you to perform calibration work in the harshest of environments. We’re confident these new tools will not only meet your calibration requirements but will make metrology simple for you!
Features
| Electrical | |
| Voltage DC | Range: 0 to 10.5 V; Resolution: 0.2 mV; Accuracy: 0.02%RDG + 0.5 mV |
| Current DC | Range: 0 to 25 mA; Resolution: 0.5 uA; Accuracy: 0.02%RDG + 1.2 uA |
| Resistance | Range: 0 to 400 Ω; Resolution: 10 mΩ; Accuracy: 0.02%RDG + 20 mΩ Range: 0 to 4000 Ω; Resolution: 100 mΩ; Accuracy: 0.02%RDG + 200 mΩ |
| Frequency (Square wave) | Range: (0.01 ~ 5) Hz; Resolution: 0.00001 Hz; Accuracy: 0.005%RDG + 0.00005 Hz Range: (5 ~ 50) Hz; Resolution: 0.0001 Hz; Accuracy: 0.005%RDG + 0.0005 Hz Range: (50 ~ 500) Hz; Resolution: 0.001 Hz; Accuracy: 0.005%RDG + 0.005 Hz Range: (500 ~ 5000) Hz; Resolution: 0.01 Hz; Accuracy: 0.005%RDG + 0.05 Hz Range: (5000 ~ 50000) Hz; Resolution: 0.1 Hz; Accuracy: 0.005%RDG + 0.5 Hz |
| Frequency (Sine wave & Triangular wave) | N/A |
| Duty Cycle | Fixed 50% at (0.01~50000)Hz |
| Voltage mV (TC) | Range: -10 to 75 mV; Resolution: 1.5 uV; Accuracy: 0.02%RDG + 4.0 uV |
| Pulse | Range: 0 to 9999999; Resolution: 1; Accuracy: N/A |
| Pulse (notes) | Optional rising edge and falling edge; minimum threshold voltage: 2.5V |
| Loop power (max 25mA) | Range: 22 V; Resolution: N/A; Accuracy: ±10% |
| General | |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Specification guaranteed temperature range | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Humidity | <95%, non-condensing |
| Power supply | 4000mAh 14.4Wh Explosion-proof lithium battery pack, charging time about 6 hours, battery pack can be charged independently |
| User interface | Icon driven menus with navigation buttons |
| Ports protection voltage | 30V max |
| Display | 4.4" (11.2 cm) 25.2 x 18.9" (640 x 480 mm) color display capacitive screen Screen protector: tempered glass film (replaceable) |
| Maximum altitude | 9843' (3000 m) |
| European Compliance | CE Mark |
| Electrical Connection | Ø4mm sockets and flat mini-jack thermocouple socket |
| Battery | Rechargeable Li-ion battery (included) |
| Battery Life | Typically 35 hours |
| Battery Charge | 110V/220V external power adapter included. Battery can be charged external to the unit. |
| External pressure module | Dual channel Serial plug, can connect two digital pressure modules |
| Warm-up time | Full specification performance is achieved after a 10 minute warm-up time. |
| ROHS compliant | Rohs II Directive 2011/65/EU, EN50581:2012 |
| Display rate | 3 readings per second |
| Barometric Accuracy (Built-in barometer) | 0.0080 psi (55 Pa) |
| IP protection level | IP67, 3.28' (1 m) drop test |
| Communication | Isolated USB-TYPEC (slave), Bluetooth BLE |
| User Interface Localization | English, Simplified Chinese, Traditional Chinese, Japanese |
| Calibration | ISO 17025 accredited calibration with data |
| Warranty | 3 years |
| Dimensions | 6.97 x 4.13 x 2.04" (177 x 105 x 52 mm) |
| Weight | 1.65 lbs (0.75 kg) |
| Electrical | |
| Voltage DC | Range: 0 to 10.5 V; Resolution: 0.2 mV; Accuracy: 0.02%RDG + 0.5 mV |
| Current DC | Range: 0 to 25 mA; Resolution: 0.5 uA; Accuracy: 0.02%RDG + 1.2 uA |
| Resistance | Range: 0 to 400 Ω; Resolution: 10 mΩ; Accuracy: 0.02%RDG + 20 mΩ Range: 0 to 4000 Ω; Resolution: 100 mΩ; Accuracy: 0.02%RDG + 200 mΩ |
| Frequency (Square wave) | Range: (0.01 ~ 5) Hz; Resolution: 0.00001 Hz; Accuracy: 0.005%RDG + 0.00005 Hz Range: (5 ~ 50) Hz; Resolution: 0.0001 Hz; Accuracy: 0.005%RDG + 0.0005 Hz Range: (50 ~ 500) Hz; Resolution: 0.001 Hz; Accuracy: 0.005%RDG + 0.005 Hz Range: (500 ~ 5000) Hz; Resolution: 0.01 Hz; Accuracy: 0.005%RDG + 0.05 Hz Range: (5000 ~ 50000) Hz; Resolution: 0.1 Hz; Accuracy: 0.005%RDG + 0.5 Hz |
| Frequency (Sine wave & Triangular wave) | N/A |
| Duty Cycle | Fixed 50% at (0.01~50000)Hz |
| Voltage mV (TC) | Range: -10 to 75 mV; Resolution: 1.5 uV; Accuracy: 0.02%RDG + 4.0 uV |
| Pulse | Range: 0 to 9999999; Resolution: 1; Accuracy: N/A |
| Pulse (notes) | Optional rising edge and falling edge; minimum threshold voltage: 2.5V |
| Loop power (max 25mA) | Range: 22 V; Resolution: N/A; Accuracy: ±10% |
| General | |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Specification guaranteed temperature range | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Humidity | <95%, non-condensing |
| Power supply | 4000mAh 14.4Wh Explosion-proof lithium battery pack, charging time about 6 hours, battery pack can be charged independently |
| User interface | Icon driven menus with navigation buttons |
| Ports protection voltage | 30V max |
| Display | 4.4" (11.2 cm) 25.2 x 18.9" (640 x 480 mm) color display capacitive screen Screen protector: tempered glass film (replaceable) |
| Maximum altitude | 9843' (3000 m) |
| European Compliance | CE Mark |
| Electrical Connection | Ø4mm sockets and flat mini-jack thermocouple socket |
| Battery | Rechargeable Li-ion battery (included) |
| Battery Life | Typically 35 hours |
| Battery Charge | 110V/220V external power adapter included. Battery can be charged external to the unit. |
| External pressure module | Dual channel Serial plug, can connect two digital pressure modules |
| Warm-up time | Full specification performance is achieved after a 10 minute warm-up time. |
| ROHS compliant | Rohs II Directive 2011/65/EU, EN50581:2012 |
| Display rate | 3 readings per second |
| Barometric Accuracy (Built-in barometer) | 0.0080 psi (55 Pa) |
| IP protection level | IP67, 3.28' (1 m) drop test |
| Communication | Isolated USB-TYPEC (slave), Bluetooth BLE |
| User Interface Localization | English, Simplified Chinese, Traditional Chinese, Japanese |
| Calibration | ISO 17025 accredited calibration with data |
| Warranty | 3 years |
| Dimensions | 6.97 x 4.13 x 2.04" (177 x 105 x 52 mm) |
| Weight | 1.65 lbs (0.75 kg) |
