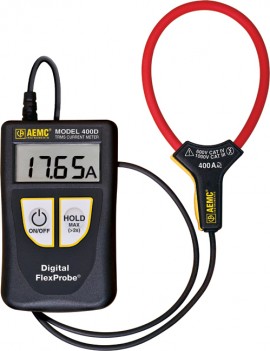

Digital FlexProbe® Model 400D-10 (True RMS, 4A AC, 40A AC, 400A AC).
Digital FlexProbe® Model 400D-10 (True RMS, 4A AC, 40A AC, 400A AC).
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
400D-10 AmpFlex, MiniFlex & Digital Flexprobe Probes
An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.
The Model 400D-10, available with a 10" sensor, has a measurement range starting at 20mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps.
Although they are high-performance instruments, the Digital FlexProbe® series remain very simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.
They are ergonomically designed for comfortable handheld use even when bulky gloves are required. The optional articulating, magnetic Multifix mounting system accessory makes it simple to hang on a wall, door, table edge or clip onto a belt.
Applications
An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.
The Model 400D-10, available with a 10" sensor, has a measurement range starting at 20mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps.
Although they are high-performance instruments, the Digital FlexProbe® series remain very simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.
They are ergonomically designed for comfortable handheld use even when bulky gloves are required. The optional articulating, magnetic Multifix mounting system accessory makes it simple to hang on a wall, door, table edge or clip onto a belt.
Applications
| Models | 400D | 4000D | ||||
| Electrical | ||||||
| Display Range | 4Aac | 40Aac | 400Aac | 40Aac | 400Aac | 4000Aac |
| Measurement Range | 0.020A to 3.999A | 4.00A to 39.99A | 40.0A to 399.9A | 0.1A to 39.99A | 40.0A to 399.9A | 400A to 3999A |
| Resolution | 1mA | 10mA | 100mA | 10mA | 100mA | 1A |
| Accuracy | ±(2% + 10cts) | ±(1.5% + 2cts) | ±(1.5% + 2cts) | ±(2% + 10cts) | ±(1.5% + 2cts) | ±(1.5% + 2cts) |
| Sensor Diameter | 400D-6 : Ø 1.77" (45mm) / 400D-10 : Ø 2.75" (70mm) | 4000D-14 : > Ø 3.94" (> 100mm) | ||||
| Sensor Length | 400D-6 : 6.69" (170mm) / 400D-10 : 9.84" (250mm) | 4000D-14 : 13.78" (350mm) | ||||
| Bandwidth | 10Hz to 3kHz | |||||
| Display | 4000 count LCD | |||||
| Mechanical | ||||||
| Power Supply | 2 x 1.5V AAA / LR3 batteries | |||||
| Safety | IEC 61010, 600V CAT IV | |||||
| Operating Temperature | 32° to 122°F (0° to 50°C) | |||||
| Weight | Approx. 130g | |||||
| Casing Dimensions | 3.94 x 2.36 x 0.79" (100 x 60 x 20mm) | |||||
| Connection Cable Length | 2.62 ft (0.8 m) | |||||
| Models | 400D | 4000D | ||||
| Electrical | ||||||
| Display Range | 4Aac | 40Aac | 400Aac | 40Aac | 400Aac | 4000Aac |
| Measurement Range | 0.020A to 3.999A | 4.00A to 39.99A | 40.0A to 399.9A | 0.1A to 39.99A | 40.0A to 399.9A | 400A to 3999A |
| Resolution | 1mA | 10mA | 100mA | 10mA | 100mA | 1A |
| Accuracy | ±(2% + 10cts) | ±(1.5% + 2cts) | ±(1.5% + 2cts) | ±(2% + 10cts) | ±(1.5% + 2cts) | ±(1.5% + 2cts) |
| Sensor Diameter | 400D-6 : Ø 1.77" (45mm) / 400D-10 : Ø 2.75" (70mm) | 4000D-14 : > Ø 3.94" (> 100mm) | ||||
| Sensor Length | 400D-6 : 6.69" (170mm) / 400D-10 : 9.84" (250mm) | 4000D-14 : 13.78" (350mm) | ||||
| Bandwidth | 10Hz to 3kHz | |||||
| Display | 4000 count LCD | |||||
| Mechanical | ||||||
| Power Supply | 2 x 1.5V AAA / LR3 batteries | |||||
| Safety | IEC 61010, 600V CAT IV | |||||
| Operating Temperature | 32° to 122°F (0° to 50°C) | |||||
| Weight | Approx. 130g | |||||
| Casing Dimensions | 3.94 x 2.36 x 0.79" (100 x 60 x 20mm) | |||||
| Connection Cable Length | 2.62 ft (0.8 m) | |||||
