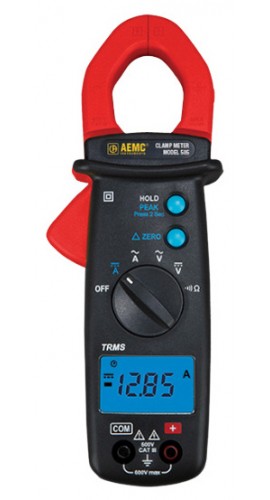

Compact and versatile, the clamp-on meter fits comfortably in a tool bag and measures True RMS, AC/DC and voltage, resistance, and continuity. With a 500 kcmil cable conductor size and a 1.18" (30 mm) hooked jaw opening, the meter is easy to maneuver in crowded wiring and breaker panels.
Compact and versatile, the clamp-on meter fits comfortably in a tool bag and measures True RMS, AC/DC and voltage, resistance, and continuity. With a 500 kcmil cable conductor size and a 1.18" (30 mm) hooked jaw opening, the meter is easy to maneuver in crowded wiring and breaker panels.
Features
Applications
| AC/DC Current (Auto-Ranging) | |
| Range | AC: 0.05 to 400 A DC: 0.10 to 400 A |
| Resolution | AC: 0.01 and 0.1 A DC: 0.01 and 0.1 A |
| AC/DC Voltage (Auto-Ranging) | |
| Range | AC: 0.5 to 600 V DC: 0.2 to 600 V |
| Resolution | AC: 0.1 and 1 V DC: 0.1 and 1 V |
| Input Impedance | AC: 10 MΩ DC: 10 MΩ |
| Resistance | Range: 0.2 to 600 Ω Maximum Test Voltage: 1.5 VDC |
| Continuity | Range: <35 Ω Maximum Test Voltage: 1.5 VDC |
| General Specifications | |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: 14 to 140°F (-10 to 60°C) |
| Jaw Opening | 1.18" (30 mm) |
| Battery Life | 40 hours |
| Safety Standards | EN/IEC 61010 to 600V CAT III |
| Dimensions | 7.83 x 2.95 x 1.42" (199 x 75 x 36 mm) |
| Weight | 8.57 oz (243 g) with batteries |
