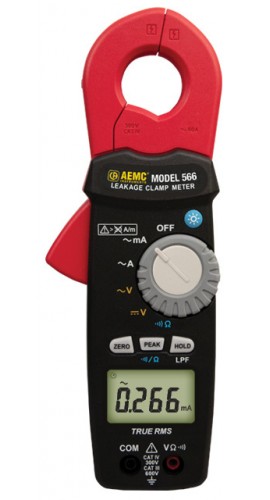

AEMC 566 TRMS Clamp-On Leakage Current Meter, 6/60/600 mA, 1/10/100 A

Model: 566 | Order No: 2139.83 | UPC: 685338110296

AEMC 566 TRMS Clamp-On Leakage Current Meter, 6/60/600 mA, 1/10/100 A

Model: 566 | Order No: 2139.83 | UPC: 685338110296

Measure low AC currents in 60 and 600mA ranges with this TRMS clamp-on leakage current meter that features a compact jaw that accommodates the most common conductors up to 0.91" (23 mm) in diameter. In addition, this meter has an ergonomic design that fits well in the hand, facilitating one-hand operation.

Measure low AC currents in 60 and 600mA ranges with this TRMS clamp-on leakage current meter that features a compact jaw that accommodates the most common conductors up to 0.91" (23 mm) in diameter. In addition, this meter has an ergonomic design that fits well in the hand, facilitating one-hand operation.

Sale Price $365.75 USD
Regular Price $385.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 566 TRMS Clamp-On Leakage Current Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 566 TRMS Clamp-On Leakage Current Meter

AEMC Instruments 566 Offers

Measure up to 60 Arms, V AC and V DC ranges, resistance, and continuity with a buzzer with this clamp-on meter. In addition, users can activate a low-pass filter (LPF) to ignore all currents other than 50/60 Hz, where only the fundamental signal is measured.

Features

  • Check for leakage and locate insulation breakdowns on live circuits
  • Measures leakage current down to 0.001 mA with up to 1 μA resolution
  • Measures current up to 60 Arms
  • Measures up to 600 V AC/DC
  • Measures Hz on either V or A inputs
  • Measures resistance and continuity
  • Hold feature freezes value
  • MAX feature keeps track of highest measured in-rush value
  • Zero button ideal for measuring relative values
  • Low pass filter to isolate (50/60) Hz fundamental from harmonics
  • Compatible with VDE 0404
  • Backlight LCD
  • Safety barrier anti-slip guard
  • Backlight button
  • Jaw trigger for jaw opening/closing, assembly Ø0.91" (23 mm)
  • Function select rotary dial
  • ZERO button
  • PEAK/Ω button
  • HOLD/LPF button
  • COM (black) input terminal jack
  • Positive (red) input terminal jack
  • Auto-off indicator
  • Polarity indicator
  • Low battery indicator
  • AC measurement indicator
  • DC measurement indicator
  • Current measurement indicator
  • Voltage measurement indicator
  • Zero indicator
  • Data hold indicator
  • Peak hold indicator
  • Low pass filter indicator
  • Continuity test indicator
  • Measurement unit
  • Resistance measurement indicator
  • Measurement unit

Applications

  • Low AC current measurements

AEMC Instruments 566 Specifications

ACmA Current (TRMS, Auto-Ranging) Range: 6 mA
Resolution: 0.001 mA
Accuracy: 1% of reading ±8 cts (50 to 60 Hz) and 2% of reading ±8 cts (60 to 500 Hz)
Maximum: 660 mArms

Range: 60 mA
Resolution: 0.01 mA
Accuracy: 1% of reading ±5 cts (50 to 60 Hz) and 2% of reading ±5 cts (60 to 500 Hz)
Maximum: 660 mArms

Range: 600 mA
Resolution: 0.1 mA
Accuracy: 1% of reading ±5 cts (50 to 60 Hz) and 2% of reading ±5 cts (60 to 500 Hz)
Maximum: 660 mArms

Maximum voltage to ground: 600 V
Zero correction: Currents smaller than approximately 0.006 mA display as zero

Low pass filter:
Range: 6 mA/resolution: 0.001 mA/accuracy: 2% of reading ±8 cts
Range: 6 mA/resolution: 0.01 mA/accuracy: 2% of reading ±5 cts
Range: 6 mA/resolution: 0.1 mA/accuracy: 2% of reading ±5 cts
AC (TRMS, Auto-Ranging) Range: 6 A
Resolution: 1 mA
Accuracy: 1% of reading ±5 cts (50 to 60 Hz) and 2% of reading ±5 cts (60 to 500 Hz)
Maximum: 66 Arms

Range: 60 A
Resolution: 10 mA
Accuracy: 1% of reading ±5 cts (50 to 60 Hz) and 2% of reading ±5 cts (60 to 500 Hz)
Maximum: 66 Arms

Maximum voltage to ground: 600 V

Low pass filter:
Range: 6 A, resolution: 0.001 A, accuracy: 2% of reading ±5 cts
Range: 60 A, resolution: 0.01 A, accuracy: 2% of reading ±5 cts
AC Voltage (TRMS) Range: 6 A
Resolution: 0.01 V
Accuracy: 1% of reading ±3 cts
Maximum: 660 V RMS

Range: 600 V
Resolution: 0.1 V
Accuracy: 1% of reading ±3 cts
Maximum: 660 V RMS

Maximum voltage to ground: 600 V
Input impedance: 2 MΩ
DC Voltage Range: 60 V
Resolution: 0.01 V
Accuracy: 1% of reading ±2 cts
Maximum: 660 V RMS

Range: 600 V
Resolution: 0.1 V
Accuracy: 1% of reading ±2 cts
Maximum: 660 V RMS

Input impedance: 2 MΩ
Resistance Ω Range: 600 Ω
Resolution: 0.1 Ω
Accuracy: 1% of reading ±2 cts
Range: 6 KΩ
Resolution: 0.001 kΩ
Accuracy: 1% of reading ±2 cts
Range: 60 KΩ
Resolution: 0.01 kΩ
Accuracy: 1% of reading ±2 cts
Range: 600 KΩ
Resolution: 0.1 kΩ
Accuracy: 1% of reading ±2 cts
Continuity Buzzer activates <45 Ω (0 to 1) kΩ

Function: A-Hz
Resolution 0 to 100 Hz: 0.1 Hz
Resolution 100 Hz to 1 kHz: 1 Hz
Sensitivity: 10 mArms min
Accuracy: ±0.5% of reading ±2 cts
Filter: On (50/60) Hz only; Off (full frequency range)
Maximum sample rate: 100 ms

Function: V-Hz
Resolution 0 to 100 Hz: 0.1 Hz
Resolution 100 Hz to 1 kHz: 1 Hz
Sensitivity: 5 mArms min
Accuracy: ±0.5% of reading ±2 cts
Filter: On (50/60) Hz only; Off (full frequency range)
Maximum sample rate: 100 ms
Overload OL is displayed
Digital Display 4-digit LCD (6000 maximum)
Backlight: LED with backlight; 30 seconds auto-off
Nominal Sample Rate 2 measurements/sec
Power Supply 2 x 1.5 V AAA batteries
Battery life (without buzzer or backlight): 40 hours running AC current and voltage functions and 60 hours running DC voltage and resistance function
Auto Power Off 30 minutes with over-ride
Temperature Operating: 32 to 104°F (0 to 40°C), <80% RH, batteries removed
Storage: 14 to 140°F (-10 to 60°C), <80% RH, batteries removed
Altitude 6000' (2000 m)
Safety IEC61557-13: Class 2, ≤30 A/m
600 V CAT III
Double insulated; Pollution Degree 2
CE
Dimensions 8.27 x 3 x 1.32" (210 x 76 x 33.5 mm)
Jaw opening size: Ø0.91" (23 mm)
Weight 10.4 oz (296 g) with batteries (meter only)
Click here for complete specifications on the AEMC Instruments 566

What's included with the AEMC Instruments 566

  • TRMS Clamp-On Leakage Current Meter
  • 2 x Color-Coded Test Leads (Red/Black)
  • 2 x 1.5 V AAA LR03 Batteries
  • Soft Carrying Case
  • User Manual
  • Two-Year Limited Warranty
