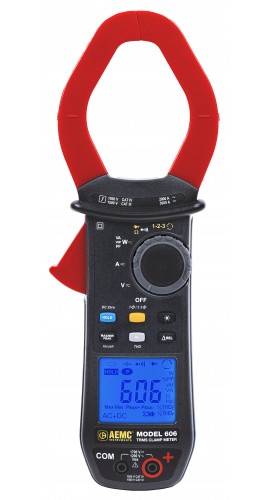

AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD

Model: 606 | Order No: 2139.62 | UPC: 685338220698

AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD

Model: 606 | Order No: 2139.62 | UPC: 685338220698

Professional and dependable, this clamp-on meter measures power, harmonic distortion, current, voltage, resistance, and frequency and performs diode and continuity tests. In addition, this meter handles 1200 V AC/1700 V DC and features True InRush technology that enables measurement of inrush current and overcurrent.

Professional and dependable, this clamp-on meter measures power, harmonic distortion, current, voltage, resistance, and frequency and performs diode and continuity tests. In addition, this meter handles 1200 V AC/1700 V DC and features True InRush technology that enables measurement of inrush current and overcurrent.

Sale Price $502.55 USD
Regular Price $529.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 606 Clamp-On Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 606 Clamp-On Meter

AEMC Instruments 606 Offers

Work with a boost in AC and DC voltage with this meter, offering enhanced functionality for solar/photovoltaic (PV) purposes. In addition, this meter features a large 10,000-count blue electroluminescent backlit display.

Features

  • Large 10,000-count blue electroluminescent backlit display
  • Measures W, VA, var and PF for single- and three phase balanced systems
  • Phase rotation order indication
  • Auto selects AC or DC measurement voltage
  • Current measurement
  • Measurement of Inrush current/overcurrent (True InRush®)
  • Voltage measurement
  • Frequency measurement
  • Measures harmonic distortion (THD)
  • Continuity test with buzzer
  • Resistance measurement
  • Diode test
  • Power measurements (W, VA, var and PF)
  • Phase order indication
  • Jaw opening up to 2.36" (60 mm) with centering marks
  • Physical guard
  • Rotary switch
  • Function buttons
  • Input terminals
  • Trigger
  • Battery compartment and compartment screw
  • Power measurements: Available for watts, VARs and VA, including minimum and maximum tracking and has the unique capability to display single and three phase power measurements
  • 1700 V DC/1200 V AC measurements
  • 1000 V CAT IV/1500 V CAT III safety rated
  • UL94 V1 flame retardant self-extinguishing
  • IP54: This meter is rugged enough for the most demanding work environments and will withstand both dust and water spray, guaranteeing its safety level over time
  • THD-r/THD-f
  • Phase rotation
  • Auto power OFF
  • Hold button
  • Backlight button
  • Min/Max button
  • Relative function
  • Peak ± function
  • Hz button

A range offering unprecedented analytical and diagnostic functions!

TRMS version of Min and Max: The Min and Max are TRMS values calculated over a duration of up to 100 ms. This feature is particularly useful for sizing an installation, the diameter of a power cable, a thermal protection device, etc.

Peak+ and Peak-: Calculated over a period of 1 ms, the Peak+ and Peak- values help to characterize the distortion affecting the signal measured. For example, they may reveal variations in the installation's behavior or even malfunctions.

ΔREL, for quick evaluation: Comparison with a reference quantity is a quick way of evaluating and analyzing your results. A signal's variations can be measured differentially or relatively. The first method indicates the difference between the value of reference and the value measured. The second method indicates the proportion. The ΔRELfunction can be applied to any type of measurement and can be used jointly with the Min, Max and Peak functions

Feature rich clamp-on meter

Ideal tool for any work in the field and is simple to use and groups all the necessary functions in a single, compact solution. Leveraging cutting-edge technology, this meter guarantees top-notch quality while ensuring user-friendly simplicity.

Performance

Benefit from a fast 12-bit TRMS digital acquisition system offering high measurement accuracy. Thanks to it's large bandwidth and high crest factor, this clamp provides accurate measurements whatever the signal type.

Ergonomics

The entire range is designed for one-handed use, even when wearing safety gloves. For maximum efficiency, each measurement corresponds to a specific switch position. The one key, one function concept makes it even easier to use. In addition, this clamp is equipped with automatic detection of the type of signal (AC or DC) on currents, voltages, and power values.

True InRush® function

True InRush® function provides the unique ability to measure power-up events from devices on a network that is already energized. Unlike other instruments which only measure the inrush when the installation is first powered up, our power clamp-on meters measure all types of inrush, even those due to load increases on an installation which is already up and running.

Applications

  • Photovoltaic (PV)
  • Solar panel, inverter testing, comissioning, engineers, and technicians
  • Solar comissioning
  • High power low voltage locations
  • AC or DC motor testing
  • Electrical power distribution, contractors, and maintenance
  • Commercial, industrial, residential and HVAC/R troubleshooting
  • Safety lighting system maintenance
  • Automotive test troubleshooting
  • Hospitals
  • Field service agencies and technicians
  • Government agencies
  • Educational institutions
  • Plant maintenance personnel
  • Electric utility power quality engineers
  • Data logging
  • Power values (W, var, VA, PF) and harmonics (THDf, THDr)

AEMC Instruments 606 Specifications

DC Voltage Measurement Measurement range: 0 to 99.99 V
Specified measurement range: 0 to 1600 V
Accuracy: 0 to 9.99 V ± (1% R + 10 cts)/10 to 99.99 V ± (1% R + 3 cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

Measurement range: 100 to 999.9 V
Specified measurement range: 0 to 1600 V
Resolution: 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1700 V1)
Specified measurement range: 0 to 1600 V
Resolution: 1 V
Input impedance: 10 MΩ
1)The display indicates +OL above 3400 V and -OL below - 3400 V, in REL mode. Above 1700 V, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
AC Voltage Measurement Measurement range: 0.15 to 99.99 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: 0.15 to 9.99 V ± (1% r + 10 cts)/10 to 99.99 V ± (1% R + 3cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

100 to 999.9 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1200 V RMS/1700 V peak1)
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 1 V
Input impedance: 10 MΩ
1)The display indicates OL above 1700 V (in PEAK mode). Above 1200 V RMS, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed. Bandwidth in AC = 3 kHz
2)Any value between zero and the min threshold of the measurement range (0.15 V) is forced to ---- on the display.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
AC+DC Voltage Measurement Measurement range: 0.15 to 99.99 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: 0.15 to 9.99 v ± (1% r + 10 cts)/10 to 99.99 V ± (1% R + 3cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

100 to 999.9 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1200 V RMS/1700 V peak1)
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 1 V
Input impedance: 10 MΩ

MAX/MIN mode in voltage (from 10 Hz to 1 kHz in AC and AC+DC, and from 0.3 V):
Accuracy: Add 1% R to the values above
Capture time of the extreme: Approximately 100 ms
PEAK mode in voltage (from 10 Hz to 1 kHz in AC and AC+DC): Accuracy: add 1.5% R to the values above
PEAK capture time: 1 ms minimum to 1.5 ms maximum
1)The display indicates OL above 1700 V (in PEAK mode). Above 1200 V RMS, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed. Bandwidth in AC = 3 kHz
2)Any value between zero and the min threshold of the measurement range (0.15 V) is forced to ---- on the display.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
DC Current Measurement Measurement range2): 0 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2): ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range: 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2): (1% R + 3 cts)
Resolution: 0.1 A

Measurement range: 1000 to 3000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2):
2000 A ± (1.5% R + 3 cts)
2000 to 2500 A ± (2.5% R + 3 cts)
2500 to 3000 A ± (3.5% R + 3 cts)
Resolution: 1 A
1)The display indicates OL above 6000 A and -OL below -6000 A in REL mode. The - and + signs are displayed (polarity)
2)The residual current at zero depends on the remanence. It can be corrected by the DC zero function of the HOLD button
AC Current Measurement Measurement range2): 0.25 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range2): 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 3 cts)
Resolution: 0.1 A

Measurement range2): 1000 to 2000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1.5% R + 3 cts)
Resolution: 1 A
1)The display indicates OL above 3000 A in PEAK mode. The - and + signs are not displayed. Bandwidth in AC = 1 kHz
2)In AC, any value between zero and the min threshold of the measurement range (0.25 A) is forced to ---- on the display
AC+DC Intensity Measurement Measurement range2): 0.25 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range2): 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 3 cts)
Resolution: 0.1 A

Measurement range2):
AC: 1000 to 2000
DC or PEAK: 1000 to 3000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy:
Up to 2000 A ± (1.5% R + 3 cts)
From 2000 to 2500 A DC ± (2.5% R + 3 cts)
From 2500 to 3000 A DC ± (3.5% R + 3 cts)
Resolution: 1 A

MAX/MIN mode in current (from 10 Hz to 1 kHz in AC and AC+DC, and from 0.30 A):
Accuracy (zero corrected): Add 1% R to the values above
Capture time of the extrema: Approximately 100 ms
PEAK mode in current (from 10 Hz to 1 kHz in AC and AC+DC):
Accuracy: Add ± (1.5% R + 0.5 A) to the values above
PEAK capture time: 1 ms minimum to 1.5 ms maximum
1)In DC, the display indicates +OL above +6000 A and -OL above -6000 A in REL mode. The + and - signs are displayed. In AC and AC+DC, the display indicates +OL above 3000 A in PEAK mode. The - and + signs are not displayed. Bandwidth in AC = 1 kHz
2)In AC, any value between zero and the min threshold of the measurement range (0.25 A) is forced to ---- on the display
True InRush Measurement Measurement range: 20 A to 2000 A AC/20 A to 3000 A DC
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (5% R + 5 cts)
Resolution: 1 A

Peak mode:
Accuracy: Add ± (1.5 % R + 0.5 A) to the values above
Peak capture time: 1 ms minimum to 1.5 ms maximum
Continuity Measurement Measurement range: 0 to 999.9 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 550 μA
Accuracy: ± (1% R + 5 cts)
Buzzer triggering threshold: Adjustable from (1 to 999) Ω (40 Ω is the default)
Resistance Measurement Measurement range1): 0 to 99.9 Ω
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 550 μA

Measurement range1): 100 to 999.9 Ω
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 0.1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 500 μA

Measurement range1): 10 to 9999 kΩ
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 100 μA

Measurement range1): 10 to 99.99 kΩ
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 10 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 10 μA

MAX/MIN mode:
Accuracy: add 1% R to the values above
Capture of the extreme: Approximately 100 ms
1)Above the maximum display value, the display unit indicates OL. The - and + signs are not displayed.
Diode Test Measurement range: 0 to 3.199 V DC
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.001 V
Measurement current: 0.55 mA
Indication (junction reversed or open circuit): OL is displayed when the measured voltage >3.199 V
Active DC Power Measurements Measurement range2): 0 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 W

Measurement range2): 10 to 99.99 kW
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 W

Measurement range2): 100 to 999.9 kW
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 W

Measurement range2): 1000 to 5100 kW1)
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1000 W
1)Display of OL or ± OL above ±5100 kW, in REL mode
2)Any applied voltage greater than 1700 V causes the emission of an intermittent alarm beep to report a dangerous overload
3)The measurement result may be affected by an instability linked to the current measurement (approximately 0.1 A). Example: For a power measurement made at 10 A, the instability of the measurement will be 0.1 A/10 A or 1%
Active AC Power Measurements Measurement range2)4): 5 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 W

Measurement range2)4): 10 to 99.99 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 10 W

Measurement range2)4): 100 to 999.9 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 100 Wbr>
Measurement range2)4): 1000 to 2400 kW1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 1000 W
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)And (3) of the previous § apply
4)Any power measured less than 5 W causes the display of dashes. If the voltage is less than 0.15 V or if the current is less than 0.15 A, causes the display of dashes ----
7) In balanced three-phases, with deformed signals (THD and harmonics), accuracies are guaranteed since Φ <30°. Additional errors are following, depending of THD: Add + 1% for 10% < THD <20%, add + 3% for 20% < THD <30%, add + 5% for 30% < THD <40%
Active AC+DC Power Measurements Measurement range2)4): 5 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)7):

Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 W

Measurement range2)4): 10 to 99.99 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 W

Measurement range2)4): 100 to 999.9 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 W

Measurement range2)4): 1000 to 5100 kW1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1000 W
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3), (4), 5, 6 and (7) of the previous § apply
Measurement of Apparent AC Power Measurement range2)4): 5 to 9.999 kVA
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 VA

Measurement range2)4): 10 to 99.99 kVA
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 10 VA

Measurement range2)4): 100 to 999.9 kVA
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 100 VA

Measurement range2)4): 1000 to 2400 kVA1)
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 1000 VA
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
Measurement of Apparent AC+DC Power Measurement range2)4): 5 to 9.999 kVA
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 VA

Measurement range2)4): 10 to 99.99 kVA
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 10 VA

Measurement range2)4): 100 to 999.9 kVA
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 100 VA

Measurement range2)4): 1000 to 5100 kVA1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 1000 VA
1)Display of O.L above 5100 kVA in single-phase (1700 V x 3000 A). Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
Measurement of Reactive AC Power Measurement range2)4): 5 to 9.999 kvar
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 10 cts)
From 1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 var

Measurement range2)4): 10 to 99.99 kvar
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 10 var

Measurement range2)4): 100 to 999.9 kvar
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 100 var

Measurement range2)4): 1000 to 2400 kvar1)
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 1 kvar
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
8)In single-phase, with deformed signals (THD and harmonics), accuracies are guaranteed since Φ >30°. Additional errors are following, depending of THD: Add + 1% for 10% < THD <20 %, add + 3% for 20% < THD <30%, add + 5% for 30% < THD <40%
Measurement of Reactive AC+DC Power Measurement range2)4): 5 to 9.999 kvar
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 var

Measurement range2)4): 10 to 99.99 kvar
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 var

Measurement range2)4): 100 to 999.9 kvar
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 var

Measurement range2)4): 1000 to 5100 kvar1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1 kvar

MAX/MIN mode in power (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time: Approximately 100 ms
1)Display of O.L above 5100 kvar in single-phase (1700 V x 3000 A). Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3), (4), 5, 6 and (8) of the previous § apply
Calculation of the Power Factor Measurement range1): -1 to 1
Specified measurement range: 0 to 50% of the measurement range/50 to 100% of the measurement range
Accuracy7): ± (3% R + 3 cts)/± (2% R + 3 cts)
Resolution: 0.01

MAX/MIN mode (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time: Approximately 100 ms
1)If one of the terms in the calculation of the power factor is displayed as O.L, or forced to zero, the display of the power factor is an indeterminate value ----
7)Of the previous § applies
Voltage Frequency Measurement Measurement range1): 5 to 99.9 Hz
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 0.1 Hz

Measurement range1): 1000 to 9999 Hz
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 1 Hz

Measurement range1): 10 to 19.99 kHz
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 10 Hz

MAX/MIN mode (from 10 Hz to 1 kHz in voltage and from 10 Hz to 1 kHz in current):
Accuracy: Add 1% R to the values of the table above
Capture time of the extrema: Approximately 100 ms
1)If the level of the signal is too low (U <3 V or I <3 A) or if the frequency is less than 5 Hz, the device cannot determine the frequency and displays dashes ----
Current Frequency Measurement Measurement range1): 5 to 999.9 Hz
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 0.1 Hz

MAX/MIN mode (from 10 Hz to 1 kHz in voltage and from 10 Hz to 1 kHz in current):
Accuracy: Add 1% R to the values of the table above
Capture time of the extrema: Approximately 100 ms
1)If the level of the signal is too low (U <3 V or I <3 A) or if the frequency is less than 5 Hz, the device cannot determine the frequency and displays dashes ----
THDr and THDf Measurement range: 0 to 100%
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (5% R + 2 cts) in voltage and ± (5% R + 5 cts) in current
Resolution: 0.1%

MAX/MIN mode in THD (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time of the extrema: Approximately 100 ms
NOTE: The display is if the input signal is too low (V < 8 V or I < 9 A) or if the frequency is less than 5 Hz
Indication of Order of the Phases Frequency range: 47 to 400 Hz
Acceptable voltage range: 50 to 1200 V
Acquisition duration period: ≤500 ms
Validity duration period:
Approximately 10 s to 50 Hz
Approximately 2 s to 400 Hz
Acquisition duration measurement period: ≤500 ms
Acceptable phase unbalance: ±10°
Acceptable amplitude unbalance: 20%
Acceptable level of harmonics in voltage: 10%
Screen LCD unit
Blue backlighting
Temperature Operating: -4 to 131°F (-20 to 55°C)
Storage: -40 to 158°F (-40 to 70°C)
Relative Humidity (RH) Operating: ≤90% to 131°F (≤90% to 55°C)
Storage: ≤90% to 158°F (≤90% to 70°C)
Power Supply Batteries: 4 x 1.5 V AA LR6
Battery life: >350 hours (without backlighting)
Auto power off: After 10 minutes with no switch and/or button activity
Compliance with International Standards Electric safety: Compliant with standards IEC/EN 61010-1 or BS EN 61010-1, IEC/EN 61010-2-032 or BS EN 61010-2-032: 1000 V CAT IV and 1500 V CAT III
Electromagnetic compatibility: Compliant with standard EN-61326-1 or BS EN 61326-1, classification: residential environment
Mechanical strength:
Free fall: 6.6' (2 m) (in accordance with standard IEC-68-2-32)
Level of protection:
Housing: IP54 (per standard IEC-60529)
Jaws: IP40
Housing Rigid polycarbonate shell with over-molded elastomer covering; UL94 V1
Jaws Polycarbonate
Opening 2.4" (60 mm)
Clamping diameter: 2.4" (60 mm)
Dimensions 11.7 x 4.4 x 1.6" (296 x 111 x 41 mm)
Screen: 1.6 x 1.9" (41 x 48 mm)
Weight 1.41 lbs (640 g) with the batteries
Click here for complete specifications on the AEMC Instruments 606

What's included with the AEMC Instruments 606

  • Clamp-On Meter
  • 2 x Set of Color-Coded Silicone Insulated Test Leads
  • Test Probes
  • Alligator Clips
  • Soft Carrying Case
  • 4 x 1.5 V AA Batteries
  • User Manual
  • Limited Three-Year Warranty

Click on a category to view a selection of compatible accessories with the AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD.

AEMC 2119.48 Multipurpose Canvas Pouch 2119.48
Multipurpose Pouch for Clamp-on Meters, Clamp-on Ground Testers, and Power Meters Models 8220 & 8230. Dimensions: 11 x 5 x 2.25".




AEMC 5000.94 Lead Set with straight banana plugs, 5', 0.15" 5000.94
Compatible with the 404 and 606 clamp meters, this lead set includes two color-coded 5' (1.5 m) silicone leads with 0.15" (4 mm) straight banana plugs. Additionally, these leads safely handle voltages up to 1000 V, are rated CAT-IV, and meet UL V2 standards.




AEMC 2152.15 Screw-on Test Leads, Colour Coded, Set of 2, 5ft 2152.15
Colour Coded silicone insulated safety leads which have 4mm right-angle banana plugs and 4mm straight screw-on banana plugs. Rated 1000V CAT IV.




AEMC 2154.74 Leads with Safety Needle Tips, Colour Coded, Set of 2, 5ft 2154.74
Color-coded 5ft lead with safety needle tips (2mm), 1000V CAT IV, 15A. For use with the AEMC 501, 503, 511-514, 565, 5231, 5233, CM605, 670, 675 & F07.




AEMC 5000.97 Probe, 1000 V, black 5000.97
Compatible with the 404 and 606 clamp meters, this black test probe safely handles voltages up to 1000 V and 15 A. In addition, this probe is rated CAT IV and meets UL V2 standards.




AEMC 5000.98 Probe, 1000 V, red 5000.98
Compatible with the 404 and 606 clamp meters, this red test probe safely handles voltages up to 1000 V and 15 A. In addition, this probe is rated CAT IV and meets UL V2 standards.




AEMC 5100.00 Safety Alligator Clip, Red 5100.00
Safety Alligator Clip, Red. Rated 1000V CAT IV, 15A, UL.




AEMC 5000.99 Safety Alligator Clip, Black 5000.99
Safety Alligator Clip, Black. Rated 1000V CAT IV, 15A, UL.




AEMC 2139.72 Soft Carrying Case 2139.72
Replacement Case for use with Clamp-on Meter Models 401, 403, 405, 601, 603 & 606




Ask a question about AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD

Customer Reviews for the AEMC Instruments 606

AEMC Instruments 606 Offers

Work with a boost in AC and DC voltage with this meter, offering enhanced functionality for solar/photovoltaic (PV) purposes. In addition, this meter features a large 10,000-count blue electroluminescent backlit display.

Features

  • Large 10,000-count blue electroluminescent backlit display
  • Measures W, VA, var and PF for single- and three phase balanced systems
  • Phase rotation order indication
  • Auto selects AC or DC measurement voltage
  • Current measurement
  • Measurement of Inrush current/overcurrent (True InRush®)
  • Voltage measurement
  • Frequency measurement
  • Measures harmonic distortion (THD)
  • Continuity test with buzzer
  • Resistance measurement
  • Diode test
  • Power measurements (W, VA, var and PF)
  • Phase order indication
  • Jaw opening up to 2.36" (60 mm) with centering marks
  • Physical guard
  • Rotary switch
  • Function buttons
  • Input terminals
  • Trigger
  • Battery compartment and compartment screw
  • Power measurements: Available for watts, VARs and VA, including minimum and maximum tracking and has the unique capability to display single and three phase power measurements
  • 1700 V DC/1200 V AC measurements
  • 1000 V CAT IV/1500 V CAT III safety rated
  • UL94 V1 flame retardant self-extinguishing
  • IP54: This meter is rugged enough for the most demanding work environments and will withstand both dust and water spray, guaranteeing its safety level over time
  • THD-r/THD-f
  • Phase rotation
  • Auto power OFF
  • Hold button
  • Backlight button
  • Min/Max button
  • Relative function
  • Peak ± function
  • Hz button

A range offering unprecedented analytical and diagnostic functions!

TRMS version of Min and Max: The Min and Max are TRMS values calculated over a duration of up to 100 ms. This feature is particularly useful for sizing an installation, the diameter of a power cable, a thermal protection device, etc.

Peak+ and Peak-: Calculated over a period of 1 ms, the Peak+ and Peak- values help to characterize the distortion affecting the signal measured. For example, they may reveal variations in the installation's behavior or even malfunctions.

ΔREL, for quick evaluation: Comparison with a reference quantity is a quick way of evaluating and analyzing your results. A signal's variations can be measured differentially or relatively. The first method indicates the difference between the value of reference and the value measured. The second method indicates the proportion. The ΔRELfunction can be applied to any type of measurement and can be used jointly with the Min, Max and Peak functions

Feature rich clamp-on meter

Ideal tool for any work in the field and is simple to use and groups all the necessary functions in a single, compact solution. Leveraging cutting-edge technology, this meter guarantees top-notch quality while ensuring user-friendly simplicity.

Performance

Benefit from a fast 12-bit TRMS digital acquisition system offering high measurement accuracy. Thanks to it's large bandwidth and high crest factor, this clamp provides accurate measurements whatever the signal type.

Ergonomics

The entire range is designed for one-handed use, even when wearing safety gloves. For maximum efficiency, each measurement corresponds to a specific switch position. The one key, one function concept makes it even easier to use. In addition, this clamp is equipped with automatic detection of the type of signal (AC or DC) on currents, voltages, and power values.

True InRush® function

True InRush® function provides the unique ability to measure power-up events from devices on a network that is already energized. Unlike other instruments which only measure the inrush when the installation is first powered up, our power clamp-on meters measure all types of inrush, even those due to load increases on an installation which is already up and running.

Applications

  • Photovoltaic (PV)
  • Solar panel, inverter testing, comissioning, engineers, and technicians
  • Solar comissioning
  • High power low voltage locations
  • AC or DC motor testing
  • Electrical power distribution, contractors, and maintenance
  • Commercial, industrial, residential and HVAC/R troubleshooting
  • Safety lighting system maintenance
  • Automotive test troubleshooting
  • Hospitals
  • Field service agencies and technicians
  • Government agencies
  • Educational institutions
  • Plant maintenance personnel
  • Electric utility power quality engineers
  • Data logging
  • Power values (W, var, VA, PF) and harmonics (THDf, THDr)

AEMC Instruments 606 Specifications

DC Voltage Measurement Measurement range: 0 to 99.99 V
Specified measurement range: 0 to 1600 V
Accuracy: 0 to 9.99 V ± (1% R + 10 cts)/10 to 99.99 V ± (1% R + 3 cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

Measurement range: 100 to 999.9 V
Specified measurement range: 0 to 1600 V
Resolution: 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1700 V1)
Specified measurement range: 0 to 1600 V
Resolution: 1 V
Input impedance: 10 MΩ
1)The display indicates +OL above 3400 V and -OL below - 3400 V, in REL mode. Above 1700 V, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
AC Voltage Measurement Measurement range: 0.15 to 99.99 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: 0.15 to 9.99 V ± (1% r + 10 cts)/10 to 99.99 V ± (1% R + 3cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

100 to 999.9 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1200 V RMS/1700 V peak1)
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 1 V
Input impedance: 10 MΩ
1)The display indicates OL above 1700 V (in PEAK mode). Above 1200 V RMS, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed. Bandwidth in AC = 3 kHz
2)Any value between zero and the min threshold of the measurement range (0.15 V) is forced to ---- on the display.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
AC+DC Voltage Measurement Measurement range: 0.15 to 99.99 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: 0.15 to 9.99 v ± (1% r + 10 cts)/10 to 99.99 V ± (1% R + 3cts)
Resolution: 0.01 V
Input impedance: 10 MΩ

100 to 999.9 V
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 0.1 V
Input impedance: 10 MΩ

Measurement range: 1000 to 1200 V RMS/1700 V peak1)
Specified measurement range2): 0 to 1100 V AC/1600 V peak
Accuracy: ± (1% R + 4 cts)
Resolution 1 V
Input impedance: 10 MΩ

MAX/MIN mode in voltage (from 10 Hz to 1 kHz in AC and AC+DC, and from 0.3 V):
Accuracy: Add 1% R to the values above
Capture time of the extreme: Approximately 100 ms
PEAK mode in voltage (from 10 Hz to 1 kHz in AC and AC+DC): Accuracy: add 1.5% R to the values above
PEAK capture time: 1 ms minimum to 1.5 ms maximum
1)The display indicates OL above 1700 V (in PEAK mode). Above 1200 V RMS, a repetitive beep indicates that the voltage being measured is greater than the safety voltage for which the device is guaranteed. Bandwidth in AC = 3 kHz
2)Any value between zero and the min threshold of the measurement range (0.15 V) is forced to ---- on the display.
*Accuracy is expressed in ± (x % of the reading (R) + y counts (ct))
DC Current Measurement Measurement range2): 0 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2): ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range: 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2): (1% R + 3 cts)
Resolution: 0.1 A

Measurement range: 1000 to 3000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy (zero corrected)2):
2000 A ± (1.5% R + 3 cts)
2000 to 2500 A ± (2.5% R + 3 cts)
2500 to 3000 A ± (3.5% R + 3 cts)
Resolution: 1 A
1)The display indicates OL above 6000 A and -OL below -6000 A in REL mode. The - and + signs are displayed (polarity)
2)The residual current at zero depends on the remanence. It can be corrected by the DC zero function of the HOLD button
AC Current Measurement Measurement range2): 0.25 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range2): 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 3 cts)
Resolution: 0.1 A

Measurement range2): 1000 to 2000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1.5% R + 3 cts)
Resolution: 1 A
1)The display indicates OL above 3000 A in PEAK mode. The - and + signs are not displayed. Bandwidth in AC = 1 kHz
2)In AC, any value between zero and the min threshold of the measurement range (0.25 A) is forced to ---- on the display
AC+DC Intensity Measurement Measurement range2): 0.25 to 99.99 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.01 A

Measurement range2): 100 to 999.9 A
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 3 cts)
Resolution: 0.1 A

Measurement range2):
AC: 1000 to 2000
DC or PEAK: 1000 to 3000 A1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy:
Up to 2000 A ± (1.5% R + 3 cts)
From 2000 to 2500 A DC ± (2.5% R + 3 cts)
From 2500 to 3000 A DC ± (3.5% R + 3 cts)
Resolution: 1 A

MAX/MIN mode in current (from 10 Hz to 1 kHz in AC and AC+DC, and from 0.30 A):
Accuracy (zero corrected): Add 1% R to the values above
Capture time of the extrema: Approximately 100 ms
PEAK mode in current (from 10 Hz to 1 kHz in AC and AC+DC):
Accuracy: Add ± (1.5% R + 0.5 A) to the values above
PEAK capture time: 1 ms minimum to 1.5 ms maximum
1)In DC, the display indicates +OL above +6000 A and -OL above -6000 A in REL mode. The + and - signs are displayed. In AC and AC+DC, the display indicates +OL above 3000 A in PEAK mode. The - and + signs are not displayed. Bandwidth in AC = 1 kHz
2)In AC, any value between zero and the min threshold of the measurement range (0.25 A) is forced to ---- on the display
True InRush Measurement Measurement range: 20 A to 2000 A AC/20 A to 3000 A DC
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (5% R + 5 cts)
Resolution: 1 A

Peak mode:
Accuracy: Add ± (1.5 % R + 0.5 A) to the values above
Peak capture time: 1 ms minimum to 1.5 ms maximum
Continuity Measurement Measurement range: 0 to 999.9 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 550 μA
Accuracy: ± (1% R + 5 cts)
Buzzer triggering threshold: Adjustable from (1 to 999) Ω (40 Ω is the default)
Resistance Measurement Measurement range1): 0 to 99.9 Ω
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 550 μA

Measurement range1): 100 to 999.9 Ω
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 0.1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 500 μA

Measurement range1): 10 to 9999 kΩ
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 1 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 100 μA

Measurement range1): 10 to 99.99 kΩ
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (1% R + 5 cts)
Resolution: 10 Ω
Open-circuit voltage: ≤3.6 V
Measurement current: 10 μA

MAX/MIN mode:
Accuracy: add 1% R to the values above
Capture of the extreme: Approximately 100 ms
1)Above the maximum display value, the display unit indicates OL. The - and + signs are not displayed.
Diode Test Measurement range: 0 to 3.199 V DC
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (1% R + 10 cts)
Resolution: 0.001 V
Measurement current: 0.55 mA
Indication (junction reversed or open circuit): OL is displayed when the measured voltage >3.199 V
Active DC Power Measurements Measurement range2): 0 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 W

Measurement range2): 10 to 99.99 kW
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 W

Measurement range2): 100 to 999.9 kW
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 W

Measurement range2): 1000 to 5100 kW1)
Specified measurement range: 0 to 4800 kW
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1000 W
1)Display of OL or ± OL above ±5100 kW, in REL mode
2)Any applied voltage greater than 1700 V causes the emission of an intermittent alarm beep to report a dangerous overload
3)The measurement result may be affected by an instability linked to the current measurement (approximately 0.1 A). Example: For a power measurement made at 10 A, the instability of the measurement will be 0.1 A/10 A or 1%
Active AC Power Measurements Measurement range2)4): 5 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 W

Measurement range2)4): 10 to 99.99 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 10 W

Measurement range2)4): 100 to 999.9 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 100 Wbr>
Measurement range2)4): 1000 to 2400 kW1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 1000 W
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)And (3) of the previous § apply
4)Any power measured less than 5 W causes the display of dashes. If the voltage is less than 0.15 V or if the current is less than 0.15 A, causes the display of dashes ----
7) In balanced three-phases, with deformed signals (THD and harmonics), accuracies are guaranteed since Φ <30°. Additional errors are following, depending of THD: Add + 1% for 10% < THD <20%, add + 3% for 20% < THD <30%, add + 5% for 30% < THD <40%
Active AC+DC Power Measurements Measurement range2)4): 5 to 9.999 kW
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)7):

Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 W

Measurement range2)4): 10 to 99.99 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 W

Measurement range2)4): 100 to 999.9 kW
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 W

Measurement range2)4): 1000 to 5100 kW1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)7):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1000 W
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3), (4), 5, 6 and (7) of the previous § apply
Measurement of Apparent AC Power Measurement range2)4): 5 to 9.999 kVA
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 VA

Measurement range2)4): 10 to 99.99 kVA
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 10 VA

Measurement range2)4): 100 to 999.9 kVA
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 100 VA

Measurement range2)4): 1000 to 2400 kVA1)
Specified measurement range: 0 to 2200 kVA
Accuracy3):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
Resolution: 1000 VA
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
Measurement of Apparent AC+DC Power Measurement range2)4): 5 to 9.999 kVA
Specified measurement range: 1 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 VA

Measurement range2)4): 10 to 99.99 kVA
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 10 VA

Measurement range2)4): 100 to 999.9 kVA
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 100 VA

Measurement range2)4): 1000 to 5100 kVA1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3):
Up to 1000 A ± (2% R + 3 cts)
1000 to 2000 A ± (2.5% R + 3 cts)
2000 to 2500 A DC ± (3.5% R + 3 cts)
2500 to 3000 A DC ± (4.5% R + 3 cts)
Resolution: 1000 VA
1)Display of O.L above 5100 kVA in single-phase (1700 V x 3000 A). Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
Measurement of Reactive AC Power Measurement range2)4): 5 to 9.999 kvar
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 10 cts)
From 1000 to 2000 A ± (2.5% R + 10 cts)
Resolution: 1 var

Measurement range2)4): 10 to 99.99 kvar
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 10 var

Measurement range2)4): 100 to 999.9 kvar
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 100 var

Measurement range2)4): 1000 to 2400 kvar1)
Specified measurement range: 0 to 2200 kvar
Accuracy3)8):
Up to 1000 A ± (2% L + 4 cts)
From 1000 to 2000 A ± (2.5% L + 4 cts)
Resolution: 1 kvar
1)Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3) and (4) of the previous § apply
8)In single-phase, with deformed signals (THD and harmonics), accuracies are guaranteed since Φ >30°. Additional errors are following, depending of THD: Add + 1% for 10% < THD <20 %, add + 3% for 20% < THD <30%, add + 5% for 30% < THD <40%
Measurement of Reactive AC+DC Power Measurement range2)4): 5 to 9.999 kvar
Specified measurement range: 1 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 10 cts)
1000 to 2000 A ± (2.5% R + 10 cts)
2000 to 2500 A DC ± (3.5% R + 10 cts)
2500 to 3000 A DC ± (4.5% R + 10 cts)
Resolution: 1 var

Measurement range2)4): 10 to 99.99 kvar
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 10 var

Measurement range2)4): 100 to 999.9 kvar
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 100 var

Measurement range2)4): 1000 to 5100 kvar1)
Specified measurement range: 0 to 100% of the measurement range
Accuracy3)8):
Up to 1000 A ± (2% R + 4 cts)
1000 to 2000 A ± (2.5% R + 4 cts)
2000 to 2500 A DC ± (3.5% R + 4 cts)
2500 to 3000 A DC ± (4.5% R + 4 cts)
Resolution: 1 kvar

MAX/MIN mode in power (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time: Approximately 100 ms
1)Display of O.L above 5100 kvar in single-phase (1700 V x 3000 A). Bandwidth in AC: In voltage = 3 kHz, in current = 1 kHz
2)(3), (4), 5, 6 and (8) of the previous § apply
Calculation of the Power Factor Measurement range1): -1 to 1
Specified measurement range: 0 to 50% of the measurement range/50 to 100% of the measurement range
Accuracy7): ± (3% R + 3 cts)/± (2% R + 3 cts)
Resolution: 0.01

MAX/MIN mode (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time: Approximately 100 ms
1)If one of the terms in the calculation of the power factor is displayed as O.L, or forced to zero, the display of the power factor is an indeterminate value ----
7)Of the previous § applies
Voltage Frequency Measurement Measurement range1): 5 to 99.9 Hz
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 0.1 Hz

Measurement range1): 1000 to 9999 Hz
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 1 Hz

Measurement range1): 10 to 19.99 kHz
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 10 Hz

MAX/MIN mode (from 10 Hz to 1 kHz in voltage and from 10 Hz to 1 kHz in current):
Accuracy: Add 1% R to the values of the table above
Capture time of the extrema: Approximately 100 ms
1)If the level of the signal is too low (U <3 V or I <3 A) or if the frequency is less than 5 Hz, the device cannot determine the frequency and displays dashes ----
Current Frequency Measurement Measurement range1): 5 to 999.9 Hz
Specified measurement range: 1 to 100% of the measurement range
Accuracy: ± (0.4% R + 1 ct)
Resolution: 0.1 Hz

MAX/MIN mode (from 10 Hz to 1 kHz in voltage and from 10 Hz to 1 kHz in current):
Accuracy: Add 1% R to the values of the table above
Capture time of the extrema: Approximately 100 ms
1)If the level of the signal is too low (U <3 V or I <3 A) or if the frequency is less than 5 Hz, the device cannot determine the frequency and displays dashes ----
THDr and THDf Measurement range: 0 to 100%
Specified measurement range: 0 to 100% of the measurement range
Accuracy: ± (5% R + 2 cts) in voltage and ± (5% R + 5 cts) in current
Resolution: 0.1%

MAX/MIN mode in THD (from 10 Hz to 1 kHz):
Accuracy: Add 1% R to the values above
Capture time of the extrema: Approximately 100 ms
NOTE: The display is if the input signal is too low (V < 8 V or I < 9 A) or if the frequency is less than 5 Hz
Indication of Order of the Phases Frequency range: 47 to 400 Hz
Acceptable voltage range: 50 to 1200 V
Acquisition duration period: ≤500 ms
Validity duration period:
Approximately 10 s to 50 Hz
Approximately 2 s to 400 Hz
Acquisition duration measurement period: ≤500 ms
Acceptable phase unbalance: ±10°
Acceptable amplitude unbalance: 20%
Acceptable level of harmonics in voltage: 10%
Screen LCD unit
Blue backlighting
Temperature Operating: -4 to 131°F (-20 to 55°C)
Storage: -40 to 158°F (-40 to 70°C)
Relative Humidity (RH) Operating: ≤90% to 131°F (≤90% to 55°C)
Storage: ≤90% to 158°F (≤90% to 70°C)
Power Supply Batteries: 4 x 1.5 V AA LR6
Battery life: >350 hours (without backlighting)
Auto power off: After 10 minutes with no switch and/or button activity
Compliance with International Standards Electric safety: Compliant with standards IEC/EN 61010-1 or BS EN 61010-1, IEC/EN 61010-2-032 or BS EN 61010-2-032: 1000 V CAT IV and 1500 V CAT III
Electromagnetic compatibility: Compliant with standard EN-61326-1 or BS EN 61326-1, classification: residential environment
Mechanical strength:
Free fall: 6.6' (2 m) (in accordance with standard IEC-68-2-32)
Level of protection:
Housing: IP54 (per standard IEC-60529)
Jaws: IP40
Housing Rigid polycarbonate shell with over-molded elastomer covering; UL94 V1
Jaws Polycarbonate
Opening 2.4" (60 mm)
Clamping diameter: 2.4" (60 mm)
Dimensions 11.7 x 4.4 x 1.6" (296 x 111 x 41 mm)
Screen: 1.6 x 1.9" (41 x 48 mm)
Weight 1.41 lbs (640 g) with the batteries
Click here for complete specifications on the AEMC Instruments 606

What's included with the AEMC Instruments 606

  • Clamp-On Meter
  • 2 x Set of Color-Coded Silicone Insulated Test Leads
  • Test Probes
  • Alligator Clips
  • Soft Carrying Case
  • 4 x 1.5 V AA Batteries
  • User Manual
  • Limited Three-Year Warranty

Click on a category to view a selection of compatible accessories with the AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD.

AEMC 2119.48 Multipurpose Canvas Pouch 2119.48
Multipurpose Pouch for Clamp-on Meters, Clamp-on Ground Testers, and Power Meters Models 8220 & 8230. Dimensions: 11 x 5 x 2.25".




AEMC 5000.94 Lead Set with straight banana plugs, 5', 0.15" 5000.94
Compatible with the 404 and 606 clamp meters, this lead set includes two color-coded 5' (1.5 m) silicone leads with 0.15" (4 mm) straight banana plugs. Additionally, these leads safely handle voltages up to 1000 V, are rated CAT-IV, and meet UL V2 standards.




AEMC 2152.15 Screw-on Test Leads, Colour Coded, Set of 2, 5ft 2152.15
Colour Coded silicone insulated safety leads which have 4mm right-angle banana plugs and 4mm straight screw-on banana plugs. Rated 1000V CAT IV.




AEMC 2154.74 Leads with Safety Needle Tips, Colour Coded, Set of 2, 5ft 2154.74
Color-coded 5ft lead with safety needle tips (2mm), 1000V CAT IV, 15A. For use with the AEMC 501, 503, 511-514, 565, 5231, 5233, CM605, 670, 675 & F07.




AEMC 5000.97 Probe, 1000 V, black 5000.97
Compatible with the 404 and 606 clamp meters, this black test probe safely handles voltages up to 1000 V and 15 A. In addition, this probe is rated CAT IV and meets UL V2 standards.




AEMC 5000.98 Probe, 1000 V, red 5000.98
Compatible with the 404 and 606 clamp meters, this red test probe safely handles voltages up to 1000 V and 15 A. In addition, this probe is rated CAT IV and meets UL V2 standards.




AEMC 5100.00 Safety Alligator Clip, Red 5100.00
Safety Alligator Clip, Red. Rated 1000V CAT IV, 15A, UL.




AEMC 5000.99 Safety Alligator Clip, Black 5000.99
Safety Alligator Clip, Black. Rated 1000V CAT IV, 15A, UL.




AEMC 2139.72 Soft Carrying Case 2139.72
Replacement Case for use with Clamp-on Meter Models 401, 403, 405, 601, 603 & 606




Ask a question about AEMC 606 Clamp-On Meter, 2000 A AC/3000 A DC, energy/power/THD

Customer Reviews for the AEMC Instruments 606

More AEMC Instruments Products
