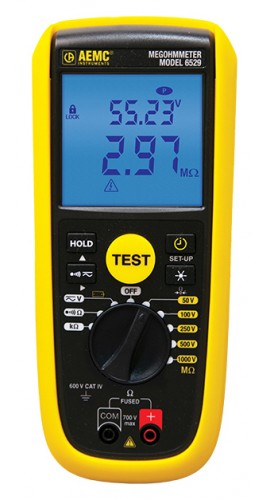

Created for the multitasker, this model offers both multimeter and megohmmeter functions. Complete with a rugged look, it's still lightweight and compact, perfect for operators to check the quality of insulation. The megohmmeter performs basic electrical measurements and has up to 1000 V test voltages.
Created for the multitasker, this model offers both multimeter and megohmmeter functions. Complete with a rugged look, it's still lightweight and compact, perfect for operators to check the quality of insulation. The megohmmeter performs basic electrical measurements and has up to 1000 V test voltages.
Features
Applications
| AC/DC Voltage Measurement | |
| Range | 700 V AC, 700 V AC+DC |
| Accuracy | DC: ±(1% R + 1 ct) AC+DC: ±(1.2% R + 1 ct) |
| Resolution | 1 V |
| Frequency Range | DC and 30 to 440 Hz |
| Input Impedance | 25 MΩ |
| Insulation Measurement | |
| Test Voltage/Resistance Range | 50 V: 0.010 MΩ to 420.0 MΩ 100 V: 0.020 MΩ to 420.0 MΩ 250 V: 0.050 to 4200 MΩ 500 V: 0.100 to 4200 MΩ 1000 V: 0.20 MΩ to 11.00 GΩ |
| Measurement Accuracy | 40 Ω/40 MΩ/400 MΩ: ±(1.5% R + 10 ct) 4.2G Ω: ±(4% R + 10 ct) 11 GΩ: ± (10% R + 10 ct) (1000 V range) |
| Continuity Measurement | |
| Range | 0 to 40Ω (200 mA test current ≤2 Ω) |
| Accuracy | 1.2% R +3 ct |
| Resolution Max | 0.01 Ω |
| Leads Compensation | Up to 5 Ω |
| Threshold | Audible signal triggered, Selectable ≤1 or 2 Ω |
| Resistance Measurement | |
| Range | 0 to 420 kΩ ±(1.2 R + 3 ct) |
| Resolution Max | 0.1 Ω |
| DMR Mode | Compares successive measurements to a reference value with alarm indication and red backlit display if deviation changes by the programmed %. The difference between the new reading and the reference measurement, along with the % deviation are displayed. |
| General Specifications | |
| Time Test | 10 seconds to 39.59 mins selectable |
| Operating Temperature | 14 to 122°F (-10 to 50°C), 90% RH |
| Display | LCD with backlight |
| Power Supply | 6 AA alkaline batteries (NEDA 15A or IEC LR6) |
| Battery Life (5s ON, 25s OFF) | >2000 measurement in MΩ, >300h in V AC/DC, >6000 measurement in continuity test |
| Dimensions | 8.54 x 3.54 x 2.44" (217 x 90 x 62 mm) |
| Safety Rating | IEC / EN 61010-1, 600 V CAT IV, CE mark |
| Ingress Protection | IP 40 (with leads connected) |
Click on a category to view a selection of compatible accessories with the AEMC 6529 Digital Megohmmeter, 50 to 1000 V.
