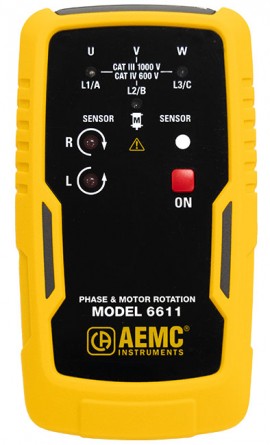

This phase and rotation meter is a compact and rugged meter designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.
This phase and rotation meter is a compact and rugged meter designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output.
The Model 6611 is also an ideal tool for measuring the proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation where direction of rotation is dependent on proper phase hook-up.
Features
Applications
Designed to identify phase rotation on 3-Phase systems and identify live and open/de-energized phases:
This three-in-one test tool is a must for any plant maintenance staff, contractors, and electricians. Designed to identify proper sequencing for three-phase power, the Model 6611 can also measure the proper rotation of motors, conveyors, pumps, and other electrical devices interconnected on the power line system before installation.
This meter is a versatile tool designed to provide you with a range of functions. You can easily determine the direction of phase rotation, as well as detect the presence or absence of phase. Additionally, this meter can help you determine the direction of rotation of a motor, with or without connection.
Comprehensive features and ease of use make this meter an efficient tool. With its compact and ergonomic design, the Model 6611 is easy to handle and use. It is built to withstand the rigors of daily use with its rugged construction.
| Electrical | |
| Operating Voltage | Rotary Direction: 1 to 400 V AC Phase Indirection: 120 to 400 V AC |
| Frequency Range | 2 to 400 Hz |
| Power Supply | 9 V alkaline battery |
| Mechanical | |
| Dimensions | 5.3 x 2.9 x 1.2" (135 x 75 x 31 mm) |
| Weight | 4.83 oz (137 g) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C), RH <80% |
| Safety | |
| Safety Rating/Ingress Protection | IEC 61010-1, IEC 61557-7 IP40 |
| Electrical Safety | 1000 V CAT III, 600 V CAT IV |
