This professional AC/DC current probes is designed to extend current measuring capabilities of DMMs, oscilloscopes and other instruments. They are built to the latest performance and safety standards, including UL approval and the CE Mark. Two different hook-shaped jaws are offered, both allow the user to hook or pry onto cables (will accept 2 x 500MCM) or even onto small bus bars.
This professional AC/DC current probes is designed to extend current measuring capabilities of DMMs, oscilloscopes and other instruments. They are built to the latest performance and safety standards, including UL approval and the CE Mark. Two different hook-shaped jaws are offered, both allow the user to hook or pry onto cables (will accept 2 x 500MCM) or even onto small bus bars.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

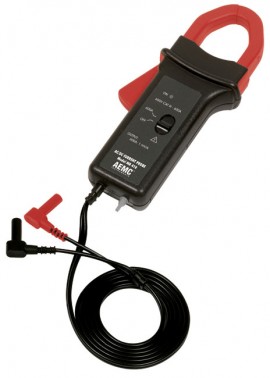

The MR Series of probes use Hall effect technology and measure AC and DC current. The electronics and batteries are self-contained in the handles. The Model MR410 is single range with manual zero adjust. The output of the AC/DC probes is 1mV/A and 10mV/A. The Model MR410 measures to 400AAc/600ADC. There is no output filtering — True RMS with DC component measurements can be achieved. Phase shift is excellent, making the Model MR410 ideal for power and power quality applications.
Features
Applications
| Nominal Range | 400AAC/600ADC |
| Measurement Range | 1 to 600A |
| Accuracy (400A Range) - 1 to 100A / 100 to 400A | 1.5% of Reading ± 1A / 2% of Reading |
| Phase Shift (400A Range) 10 to 200A / 200 too 400A | ≤ 2.5°/ ≤ 2° |
| Accuracy (600ADC Range) - 400 to 600ADC only | 2.5% of Reading |
| Overload | 1000AAC and 1500ADC continuous up to 1kHz |
| Frequency Range | DC to 10kHz @ -3dB |
| Load Impedance | > 100kΩ/100pF |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 120 hours life) |
| Output Termination | 5 ft Lead |
| Dimensions | 8.8 x 3.82 x 1.73" (224 x 97 x 44mm) |
| Weight | 15 oz (440g) |
| Nominal Range | 400AAC/600ADC |
| Measurement Range | 1 to 600A |
| Accuracy (400A Range) - 1 to 100A / 100 to 400A | 1.5% of Reading ± 1A / 2% of Reading |
| Phase Shift (400A Range) 10 to 200A / 200 too 400A | ≤ 2.5°/ ≤ 2° |
| Accuracy (600ADC Range) - 400 to 600ADC only | 2.5% of Reading |
| Overload | 1000AAC and 1500ADC continuous up to 1kHz |
| Frequency Range | DC to 10kHz @ -3dB |
| Load Impedance | > 100kΩ/100pF |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 120 hours life) |
| Output Termination | 5 ft Lead |
| Dimensions | 8.8 x 3.82 x 1.73" (224 x 97 x 44mm) |
| Weight | 15 oz (440g) |
