General purpose current probe designed for use with DMMs, loggers or oscilloscopes and other instruments that have voltage inputs. Features a Measurement range of 400A AC/600A DC and 1000A AC/1500A DC.
General purpose current probe designed for use with DMMs, loggers or oscilloscopes and other instruments that have voltage inputs. Features a Measurement range of 400A AC/600A DC and 1000A AC/1500A DC.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

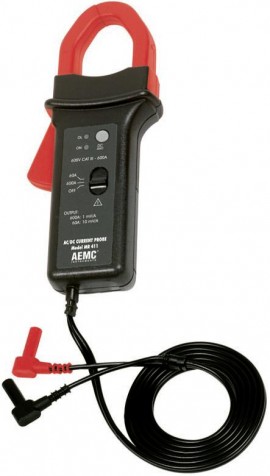

The MR411 is a The MR411 offers dual ranges of 40 and 400AAC or 60 and 600ADC. The MR411 has an integral 5 ft (1.5m) lead terminated by shrouded banana plugs.
Features
Applications
| Nominal Range | 400A AC/600A DC |
| Measurement Range | 0.2 to 600A |
| Output Signal | 60A: 10mV/A 600A: 1mV/A |
| Accuracy (60A Range) | 0.5 to 40A: 1.5% of Reading ±0.5A 40 to 60A DC only 1.5% of Reading |
| Phase Shift (60A Range) | 10 to 20A: 45 to 65Hz: ≤3.5° 20 to 40A: ≤3° |
| Accuracy (600A DC Range) | 0.5 to 100A: 1.5% of Reading ±1A 100 to 400A: only 2.0% of Reading 400 to 600A DC: only 2.5% of Reading |
| Phase Shift (600A Range) | 10 to 100A: ≤3° 100 to 400A: ≤2.5° |
| Overload | 1000A AC and 1500A DC continuous up to 1kHz |
| Frequency Range | DC to 10kHz at -3dB |
| Load Impedance | >100kΩ/100pF |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 50 hours life) |
| Output Termination | 5ft Lead |
| Nominal Range | 400A AC/600A DC |
| Measurement Range | 0.2 to 600A |
| Output Signal | 60A: 10mV/A 600A: 1mV/A |
| Accuracy (60A Range) | 0.5 to 40A: 1.5% of Reading ±0.5A 40 to 60A DC only 1.5% of Reading |
| Phase Shift (60A Range) | 10 to 20A: 45 to 65Hz: ≤3.5° 20 to 40A: ≤3° |
| Accuracy (600A DC Range) | 0.5 to 100A: 1.5% of Reading ±1A 100 to 400A: only 2.0% of Reading 400 to 600A DC: only 2.5% of Reading |
| Phase Shift (600A Range) | 10 to 100A: ≤3° 100 to 400A: ≤2.5° |
| Overload | 1000A AC and 1500A DC continuous up to 1kHz |
| Frequency Range | DC to 10kHz at -3dB |
| Load Impedance | >100kΩ/100pF |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 50 hours life) |
| Output Termination | 5ft Lead |
