Two different hook-shaped jaws are offered, both permitting the user to "pry" or "hook" onto cables (will accept 2 x 500MCM) or even onto small bus bars Features a measurement range of 400A AC/600A DC and 1000A AC/1500A DC.
Two different hook-shaped jaws are offered, both permitting the user to "pry" or "hook" onto cables (will accept 2 x 500MCM) or even onto small bus bars Features a measurement range of 400A AC/600A DC and 1000A AC/1500A DC.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

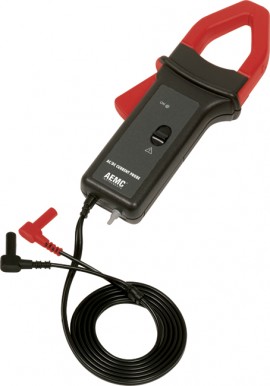

The MR461 is designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs. The probe has a 6.5 ft (1.98m) lead terminated by a BNC connector.
Features
Applications
| Nominal Range | 40A AC/60A DC & 400A AC/600A DC |
| Measurement Range | 0.2 to 600A |
| Output Signal | 40A: 10mV/A 400A: 1mV/A |
| Accuracy (60A DC Range) | 0.5 to 40A: 1.5% of Reading ± 0.5A 40 to 60A DC: only 1.5% of Reading |
| Phase Shift (60A Range) | 10 to 20A: ≤3.5°; 20 to 100A: ≤3° |
| Accuracy (600A DC Range) | 0.5 to 100A: 1.5% of Reading ±1A 100 to 400A: 2% of Reading 400 to 600A DC only 2.5% of Reading |
| Phase Shift (600A Range) | 10 to 100A: ≤3.0° 100 to 400A: ≤2.5° |
| Overload | 1000A AC and 1500A DC: continuous up to 1kHz |
| Frequency Range | DC to 10kHz at -3dB |
| Load Impedance | >100kΩ/100pF max |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 50 hours life) |
| Output Termination | 6ft BNC |
| Nominal Range | 40A AC/60A DC & 400A AC/600A DC |
| Measurement Range | 0.2 to 600A |
| Output Signal | 40A: 10mV/A 400A: 1mV/A |
| Accuracy (60A DC Range) | 0.5 to 40A: 1.5% of Reading ± 0.5A 40 to 60A DC: only 1.5% of Reading |
| Phase Shift (60A Range) | 10 to 20A: ≤3.5°; 20 to 100A: ≤3° |
| Accuracy (600A DC Range) | 0.5 to 100A: 1.5% of Reading ±1A 100 to 400A: 2% of Reading 400 to 600A DC only 2.5% of Reading |
| Phase Shift (600A Range) | 10 to 100A: ≤3.0° 100 to 400A: ≤2.5° |
| Overload | 1000A AC and 1500A DC: continuous up to 1kHz |
| Frequency Range | DC to 10kHz at -3dB |
| Load Impedance | >100kΩ/100pF max |
| Working/Common Mode Voltage | 600Vrms |
| Battery | 9V Alkaline (Approx. 50 hours life) |
| Output Termination | 6ft BNC |
