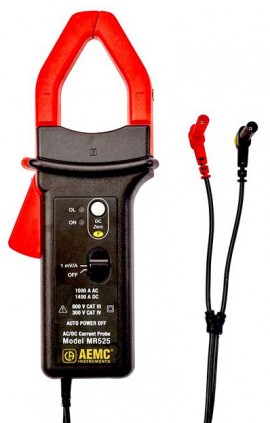

Without opening the circuit in which the currents flow, the powerful Hall-effect current probe with two ranges measures combined AC and DC currents. Designed for DMM, data loggers, and power analyzers, it has a 5' (1.5 m) lead terminated by 0.16" (4 mm) safety banana plugs and can measure up to 1000 AAC and 1400 ADC.
Without opening the circuit in which the currents flow, the powerful Hall-effect current probe with two ranges measures combined AC and DC currents. Designed for DMM, data loggers, and power analyzers, it has a 5' (1.5 m) lead terminated by 0.16" (4 mm) safety banana plugs and can measure up to 1000 AAC and 1400 ADC.
Features
Applications
| Current Range | 0.5 to 1000 AAC, 1400 ADC |
| Output | Signal: 1 mV/A via a 5' (1.5 m) lead Terminal: 4 mm safety banana plug |
| Frequency Range | DC to 30 kHz (-3 dB) (depending of current value) |
| Phase Shift at 50/60 Hz | ≤1.5° at 800 A |
| Load Impedance | >1 MΩ and ≤100 pF |
| Relative Humidity | Up to 85% at 35°C |
| Overload | 3000 ADC or 1000 AAC continuous for <1 kHz |
| Zero Adjust | Automatic on both ranges |
| Battery Life | 50 hours typical |
| Temperature | Operating: 14 to 131°F (-10 to 55°C) Storage: -40 to 176°F (-40 to 80°C) |
| Safety | Ingress protection: IP40 EMC: EN 61326-1 Electrical: IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600 V CAT III |
| Maximum Conductor Size | 1.18” (30 mm) or two bus bar 1.24 x 0.39” (31.5 x 10 mm) |
| Dimensions | 9.31 x 3.82 x 1.73” (236.5 x 97 x 44 mm) |
| Weight | 1.15 lbs (520 g) |
