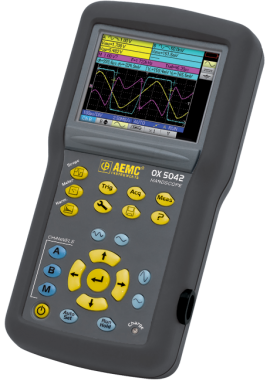

This 40MHz oscilloscope features compact hand-held design equipped with a color screen and LED backlighting for precise, crisp data display.
This 40MHz oscilloscope features compact hand-held design equipped with a color screen and LED backlighting for precise, crisp data display.
This compact, shockproof, IP54, Handscope Oscilloscope can be comfortably held in one hand. It is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.
Features
| Display | Color 3.5" TFT LCD 320 x 240 – LED Backlighting |
| Channels | 2 X 600V Isolated channels / 40MHz |
| Vertical Sensitivity | 5mV to 200V/div and up to 156µV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1% |
| Max Input Voltage | 600Vrms CAT III – Derating -20dB per decade from 100kHz |
| Interface | 5 micro-ohm to 2500 ohm |
| Batteries | 3 wire 100 ohm platinum RTD |
| Dimensions (L x W x H) | 0.1°C |
| Weight | Yes – Copper, Aluminum or Custom |
Click on a category to view a selection of compatible accessories with the AEMC OX5042-CK Handscope Portable Oscilloscope, 2-Channel, 40MHz, MN251T, MiniFlex 3000-14-1-1.
