AFL FOCIS-WIFI2-N FOCIS WiFi2 Fiber Optic Connector Inspection System Kit

Model: FOCIS-WIFI2-N

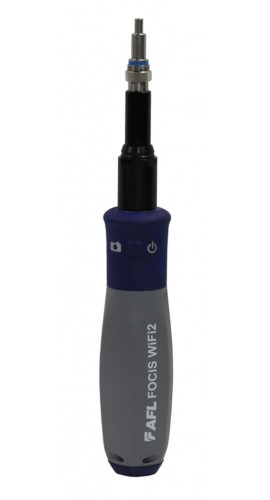

AFL FOCIS-WIFI2-N FOCIS WiFi2 Fiber Optic Connector Inspection System Kit-

Downloads:

More AFL Products

Ask an Expert

AFL FOCIS-WIFI2-N FOCIS WiFi2 Fiber Optic Connector Inspection System Kit

Model: FOCIS-WIFI2-N

The ergonomic FOCIS WiFi2 fiber optic connector inspection system that, when paired with an iOS or Android smart device, provides fast and accurate IEC/IPC/AT&T compliant and user-defined pass/fail end-face cleanliness analysis. Free of charge iOS and Android companion apps support a comprehensive and user-friendly feature set. With the press of a single button, FOCIS WiFi2 autofocuses, captures, centers and analyzes the end-face image to industry standards._

The ergonomic FOCIS WiFi2 fiber optic connector inspection system that, when paired with an iOS or Android smart device, provides fast and accurate IEC/IPC/AT&T compliant and user-defined pass/fail end-face cleanliness analysis. Free of charge iOS and Android companion apps support a comprehensive and user-friendly feature set. With the press of a single button, FOCIS WiFi2 autofocuses, captures, centers and analyzes the end-face image to industry standards._

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

AFL FOCIS-FLX-P4XN FOCIS Flex Fiber Optic Connector Inspection System-

AFL FOCIS-FLX-P4XN FOCIS Flex Fiber Optic Connector Inspection System

Model: FOCIS-FLX-P4XN

Features auto-focus and auto-centering for fast, easy inspection, and untethered operation simplify access at patch panels. This unit is a self-contained, compact, handheld inspection solution with IEC, IPC, and user-defined pass/fail analysis.

Learn More

AFL FOCIS-WIFI2-N Offers

The FOCIS WiFi2 fiber optic connector inspection system kit have a wide range of adapter tips.

Features

  • Trim, lightweight, ergonomic and highly productive tool
  • App-based automatic and manual focus; auto-centering after image capture
  • One button workflow using rapid LED feedback on probe
  • Multi-color LED on probe for fast pass/fail user inspection feedback
  • Pairs with an iOS or Android smart device
  • IEC, IPC, AT&T and user-defined pass/fail analysis when paired with a smart device
  • Wide range of adapter tips including MPO/MTP multi-fiber connectors and bulkheads
  • Over 8 hours operation with rechargeable Li-Ion battery

Applications

  • Inspection of connectors on patch cords or in bulkhead adapters
  • Installation, troubleshooting and maintenance of fiber network
  • Inspection of multi-fiber connectors including MPO16 and MXC®
  • Critical fiber infrastructure performance assurance
  • Verification of proper connector cleaning methods of procedure

AFL FOCIS-WIFI2-N Specifications

Field of View (FOV) Live and Captured: 612 x 460 µm;
WiFi Characteristics IEEE 802.11bng
Battery Type Li-Ion, non-replaceable by user
Maximum Charger Current Draw 1.2A, battery charge current + device consumption current
Operating Time 60 hrs (typical) ; 8 hrs continuous
AC Charger Voltage 100-240VAC
AC Frequency 50/60Hz
AC Current 5VDC, 2A
Operating Temperature 32 to 122°F (0 to 50°C)
Weight 150 g (5.3 oz)
Safety & Compliance Certifications UL, CE, FCC Part 15
Click here for complete specifications on the AFL FOCIS-WIFI2-N

What's included with the AFL FOCIS-WIFI2-N

  • FOCIS WiFi2
  • Soft Carry Case
  • AC Charger

Ask a question about AFL FOCIS-WIFI2-N FOCIS WiFi2 Fiber Optic Connector Inspection System Kit

Customer Reviews for the AFL FOCIS-WIFI2-N

AFL FOCIS-WIFI2-N Offers

The FOCIS WiFi2 fiber optic connector inspection system kit have a wide range of adapter tips.

Features

  • Trim, lightweight, ergonomic and highly productive tool
  • App-based automatic and manual focus; auto-centering after image capture
  • One button workflow using rapid LED feedback on probe
  • Multi-color LED on probe for fast pass/fail user inspection feedback
  • Pairs with an iOS or Android smart device
  • IEC, IPC, AT&T and user-defined pass/fail analysis when paired with a smart device
  • Wide range of adapter tips including MPO/MTP multi-fiber connectors and bulkheads
  • Over 8 hours operation with rechargeable Li-Ion battery

Applications

  • Inspection of connectors on patch cords or in bulkhead adapters
  • Installation, troubleshooting and maintenance of fiber network
  • Inspection of multi-fiber connectors including MPO16 and MXC®
  • Critical fiber infrastructure performance assurance
  • Verification of proper connector cleaning methods of procedure
Show More...

AFL FOCIS-WIFI2-N Specifications

Field of View (FOV) Live and Captured: 612 x 460 µm;
WiFi Characteristics IEEE 802.11bng
Battery Type Li-Ion, non-replaceable by user
Maximum Charger Current Draw 1.2A, battery charge current + device consumption current
Operating Time 60 hrs (typical) ; 8 hrs continuous
AC Charger Voltage 100-240VAC
AC Frequency 50/60Hz
AC Current 5VDC, 2A
Operating Temperature 32 to 122°F (0 to 50°C)
Weight 150 g (5.3 oz)
Safety & Compliance Certifications UL, CE, FCC Part 15
Click here for complete specifications on the AFL FOCIS-WIFI2-N

What's included with the AFL FOCIS-WIFI2-N

  • FOCIS WiFi2
  • Soft Carry Case
  • AC Charger

Ask a question about AFL FOCIS-WIFI2-N FOCIS WiFi2 Fiber Optic Connector Inspection System Kit

Customer Reviews for the AFL FOCIS-WIFI2-N
