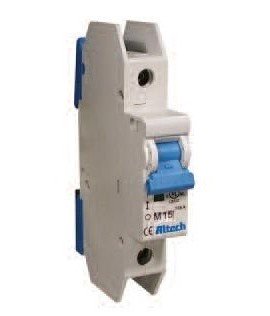

UL489 listed AC version miniature circuit breaker with a molded case has D-trip characteristics ideal for branch circuit protection. DIN rail mounted and features a magnetic trip-point and relatively long thermal trip delay that works on applications like high inrush motors, transformers, and power supplies.
UL489 listed AC version miniature circuit breaker with a molded case has D-trip characteristics ideal for branch circuit protection. DIN rail mounted and features a magnetic trip-point and relatively long thermal trip delay that works on applications like high inrush motors, transformers, and power supplies.
Features
Applications
| Voltage Rating | 0.2 to 63 A / 240 V AC, 0.2 to 32 A / 480 Y / 277 V AC |
| Rated Current | 10 A |
| Number of Pole | 1 |
| Trip Characteristics | D |
| Interrupting Capacity | 10 kA |
| Terminal Torque (min/max) | 2 Nm (17.7 lb.in.) / 2.5 Nm (22.2 lb.in) |
| Electrical Life | 6,000 switching cycles ON/ OFF |
| Mechanical Life | 10,000 switching cycles ON/ OFF |
| Vibration Resistance | > 15 g according to DIN EN 60069-2-59 during a load with 1.05 |
| Resistance to mechanical shocks | 25 g @ 11 ms |
| Degree of protection acc. IEC/EN 60529 | IP20 |
| Temperature Range | Calibration 104°F (40°C) Operating -13 to 140°F (-25 to 60°C) Storage -13 to 167°F (-25 to 75°C) |
| Mounting Orientation | In any plane |
| Dimension | 4.29 x 2.62 x 0.69" (109 x 66.5 x 17.5 mm) |
| Weight | 3.74 lb (1.7 kg) |
| Voltage Rating | 0.2 to 63 A / 240 V AC, 0.2 to 32 A / 480 Y / 277 V AC |
| Rated Current | 10 A |
| Number of Pole | 1 |
| Trip Characteristics | D |
| Interrupting Capacity | 10 kA |
| Terminal Torque (min/max) | 2 Nm (17.7 lb.in.) / 2.5 Nm (22.2 lb.in) |
| Electrical Life | 6,000 switching cycles ON/ OFF |
| Mechanical Life | 10,000 switching cycles ON/ OFF |
| Vibration Resistance | > 15 g according to DIN EN 60069-2-59 during a load with 1.05 |
| Resistance to mechanical shocks | 25 g @ 11 ms |
| Degree of protection acc. IEC/EN 60529 | IP20 |
| Temperature Range | Calibration 104°F (40°C) Operating -13 to 140°F (-25 to 60°C) Storage -13 to 167°F (-25 to 75°C) |
| Mounting Orientation | In any plane |
| Dimension | 4.29 x 2.62 x 0.69" (109 x 66.5 x 17.5 mm) |
| Weight | 3.74 lb (1.7 kg) |
