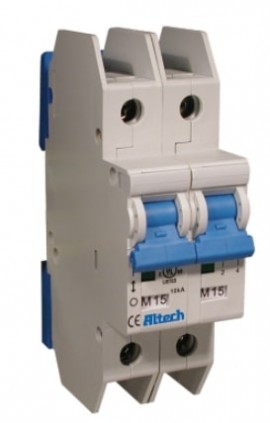

DIN rail mountable L-series circuit breaker with a molded case is UL489 listed with C-strip characteristics for inrush motors, resistive loads, wiring protection, receptacles, and lighting. In addition, it offers a relatively short thermal trip delay, medium magnetic trip point, and a rated current of 4 A.
DIN rail mountable L-series circuit breaker with a molded case is UL489 listed with C-strip characteristics for inrush motors, resistive loads, wiring protection, receptacles, and lighting. In addition, it offers a relatively short thermal trip delay, medium magnetic trip point, and a rated current of 4 A.
Features
Applications
| Rated Current | 4 A |
| Number of Poles | Two |
| Trip Characteristics | C trip |
| Interrupting Capacity | 10 kA |
| Temperature | Calibration: 104°F (40°C) Ambient:-13 to 140°F (-25 to 60°C) Storage:-13 to 167°F (-25 to 75°C) |
| Terminal Size Acceptability and Terminal Torque | 14 to 3 AWG: 17.7 lb-in (2.0 Nm) 18 to 16 AWG: 25 lb-in (2.8 Nm) |
| Electrical Life | 6000 switching cycles ON/ OFF |
| Mechanical Life | 10,000 switching cycles ON/ OFF |
| Degree of protection acc. IEC/EN 60529 | IP20 |
| Mounting Orientation | In any plane |
| Width | 0.69" (17.5 mm) |
| Weight | 3.74 lb (1.7 kg) |
