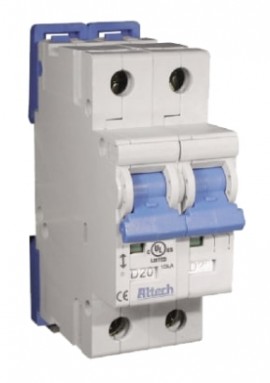

Equipped with a UL508 manual motor controller, this circuit breaker is ideal for applications such as control transformers, power supplies, and reactive loads. DIN rail mounted 20 A model has G-trip characteristics and features a very high magnetic trip point and relatively long thermal trip delay.
Equipped with a UL508 manual motor controller, this circuit breaker is ideal for applications such as control transformers, power supplies, and reactive loads. DIN rail mounted 20 A model has G-trip characteristics and features a very high magnetic trip point and relatively long thermal trip delay.
Features
Applications
| Rated Current | 20 A |
| Voltage Rating | 480 Y/277 V AC |
| Poles | Two |
| Trip Characteristics | G |
| Interrupting Capacity | 10 kA |
| Temperature Range | Calibration: 104°F (40°C) Ambient: -13 to 140°F (-25 to 60°C) Storage:-13 to 167°F (-25 to 75°C) |
| Terminal Size Acceptability and Terminal Torque |
14-3 AWG: 17.5 lb-in (2.0 Nm) 18-16 AWG: 25 lb-in(2.8 Nm) |
| Terminal Protection Degree | IP20 |
| Width | 0.69" (17.5 mm) per pole |
| Vibration Resistance | 3 g (8 to 50 Hz) |
| Rated Current | 20 A |
| Voltage Rating | 480 Y/277 V AC |
| Poles | Two |
| Trip Characteristics | G |
| Interrupting Capacity | 10 kA |
| Temperature Range | Calibration: 104°F (40°C) Ambient: -13 to 140°F (-25 to 60°C) Storage:-13 to 167°F (-25 to 75°C) |
| Terminal Size Acceptability and Terminal Torque |
14-3 AWG: 17.5 lb-in (2.0 Nm) 18-16 AWG: 25 lb-in(2.8 Nm) |
| Terminal Protection Degree | IP20 |
| Width | 0.69" (17.5 mm) per pole |
| Vibration Resistance | 3 g (8 to 50 Hz) |
