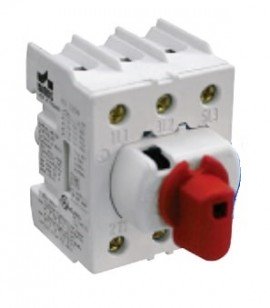

With advanced switch technology, this three-pole disconnect switch is safe and durable for extended and direct handle applications. In addition, it has a 25 A current rating and 600 V AC maximum voltage.
With advanced switch technology, this three-pole disconnect switch is safe and durable for extended and direct handle applications. In addition, it has a 25 A current rating and 600 V AC maximum voltage.
Features
| General Purpose Current | 25 A |
| Maximum Voltage | 600 V AC |
| Number of Poles | Three |
| Motor FLA | 21 A @ 480 V AC 11 A @ 600 V AC |
| Short Circuit Withstand Rating | 10 kA |
| Terminal Size Acceptability | 14-8 AWG |
| Terminal Torque | 16 lb-in (1.8 Nm) |
| Screw Head Type | No. 2 Pozidrive |
| General Purpose Current | 25 A |
| Maximum Voltage | 600 V AC |
| Number of Poles | Three |
| Motor FLA | 21 A @ 480 V AC 11 A @ 600 V AC |
| Short Circuit Withstand Rating | 10 kA |
| Terminal Size Acceptability | 14-8 AWG |
| Terminal Torque | 16 lb-in (1.8 Nm) |
| Screw Head Type | No. 2 Pozidrive |
