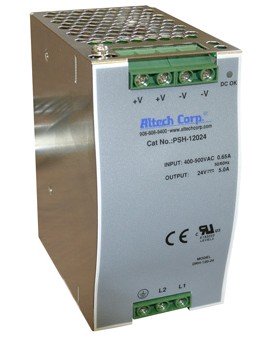

Single phase power supply with 24 VDC 5 A output and 120 W rated power. Enclosed in a metal casing with DIN rail mountable design and includes overload, overvoltage and overtemperature protections.
Single phase power supply with 24 VDC 5 A output and 120 W rated power. Enclosed in a metal casing with DIN rail mountable design and includes overload, overvoltage and overtemperature protections.
Features
| DC Voltage and rated current Output | 24 V, 0 to 5 A |
| Rated Power | 120 W |
| Ripple & Noise (max) | 80 mVp-p |
| Voltage Adj. Range | 24 to 48 V |
| Voltage Tolerance | ±1.0% |
| Input Frequency Range | 47 to 63 Hz |
| Overload Protection | 105 to 150% rated output power |
| Overvoltage Protection | 29 to 33 V |
| Overtemperature Protection | 90°C ± 5°C (RTH2) detect on heat sink of power transistor |
| DC Voltage and rated current Output | 24 V, 0 to 5 A |
| Rated Power | 120 W |
| Ripple & Noise (max) | 80 mVp-p |
| Voltage Adj. Range | 24 to 48 V |
| Voltage Tolerance | ±1.0% |
| Input Frequency Range | 47 to 63 Hz |
| Overload Protection | 105 to 150% rated output power |
| Overvoltage Protection | 29 to 33 V |
| Overtemperature Protection | 90°C ± 5°C (RTH2) detect on heat sink of power transistor |
