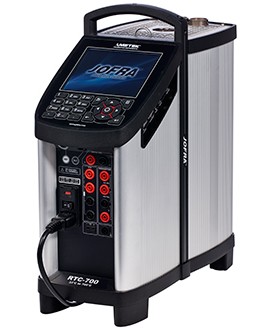

Compact and lightweight, this portable temperature calibrator offers accurate and reliable calibrations. With a temperature range of -148 to 311°F (-100 to 155°C), this calibrator features dynamic load compensation technology for perfect temperature uniformity, as well as increased heating and cooling speed.
Compact and lightweight, this portable temperature calibrator offers accurate and reliable calibrations. With a temperature range of -148 to 311°F (-100 to 155°C), this calibrator features dynamic load compensation technology for perfect temperature uniformity, as well as increased heating and cooling speed.
With a large color display, this portable temperature calibrator features excellent stability and dynamic load compensation.
Features
Applications
| Temperature | |
| Range | At ambient 32°F (0°C): -148 to 311°F (-100 to 155°C) At ambient 73°F (23°C): -148 to 311°F (-100 to 155°C) At ambient 104°F (40°C): 117 to 311°F (-83 to 155°C) |
| Stability | ±0.054°F (±0.03°C) |
| Settings | Resolution: 1, 0.1, 0.01, or 0.001 Units: °C or °F or K |
| Heating Time | -148 to 73°F (-100 to 23°C): 12 minutes 73 to 311°F (23 to 155°C): 14 minutes |
| Cooling Time | 311 to 73°F (155 to 23°C): 40 minutes 73 to -112°F(23 to -80°C): 65 minutes -176 to -130°F (-80 to -90°C): 20 minutes -194 to-148°F (-90 to -100°C): 50 minutes 73 to -148°F (23 to -100°C): 135 minutes 311 to -148°F (155 to -100°C): 175 minutes |
| Time to Stability (Typical) | 10 minutes |
| General Specifications | |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: 14 to 122°F (-10 to 50°C) |
| Humidity | 5 to 90% RH, non-condensing |
| Protection Class | IP10 |
| Dimensions | 20.9 x 6.65 x 17" (531 x 169 x 432 mm) |
| Weight | 33.5 lbs (15.2 kg) |
