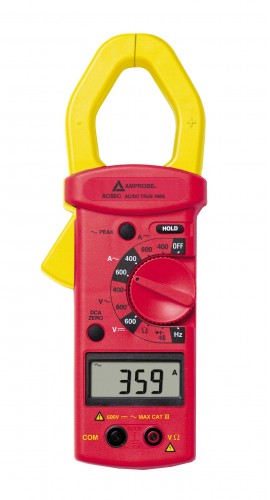

This clamp type digital multimeter measures AC/DC current and voltage to 600 V and 600 A as well as frequency and resistance. Features features 8 functions and 11 measuring ranges.
This clamp type digital multimeter measures AC/DC current and voltage to 600 V and 600 A as well as frequency and resistance. Features features 8 functions and 11 measuring ranges.
Features
| AC Voltage | 600 V |
| DC Voltage | 400.00 V, 600 V |
| AC Current | 400.00 A, 600 A |
| DC Current | 400.00 A, 600 A |
| Resistance | 4.000 kO |
| Continuity | yes |
| Frequency | 4 kHz, 20 kHz |
| Accommodates conductors | up to 1.3 (35 mm) in diameter |
| DC Voltage accuracy: | ± (0.75 % rdg + 2 dgts) |
| DC Voltage resolution: | 1 V in 600 V range |
| DC Voltage input impedance: | 10 MO |
| AC Voltage (40-450 Hz) range: | 400 V, 600 V |
| AC Voltage (40-450 Hz) accuracy: | ± (1.2 % rdg + 5 dgts) |
| AC Voltage (40-450 Hz) resolution: | 0.1 V in 400 V range |
| AC Voltage (40-450 Hz) input impedance: | 10 MO |
| DC Current ranges: | 400 A, 600 A |
| DC Current accuracy: | ± (2 % rdg + 5 dgts) |
| DC Current resolution: | 0.1 A in 400 A range |
| AC Current (40-450 Hz): | 400 A, 600 A |
| AC Current (40-450 Hz): | ± (2 % rdg + 5 dgts) |
| AC Current (40-450 Hz): | 0.1 A in 400 A range |
| Frequency (Hz), current and voltage ranges: | 4 kHz, 20 kHz |
| Frequency (Hz), current and voltage accuracy: | ± (0.5 % rdg + 5 dgts) |
| Frequency (Hz), current and voltage resolution: | 1 Hz in 4 kHz range |
| Frequency (Hz), current and voltage sensitivity: | 5 A/1 V in 4 kHz range, 5 A/5 V in 20 kHz range |
