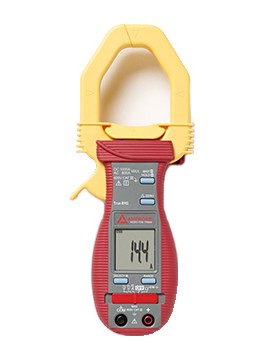

The digital clamp-on multimeter offers superior AC/DC measurement capabilities, high product quality, and enhanced ergonomics. It offers True RMS, a large backlight LCD, and a MAX capture function for inrush current measurements.
The digital clamp-on multimeter offers superior AC/DC measurement capabilities, high product quality, and enhanced ergonomics. It offers True RMS, a large backlight LCD, and a MAX capture function for inrush current measurements.
Features
| Display | 3 ¾ digits 4000 counts LCD |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Low Battery | Below approximately 2.4 V |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 140°F (-20 to 60°C), < 80% R.H. (with battery removed) Coefficient: nominal 0.15 x (specified accuracy)/ °C at (0°C -18°C or 28°C -40°C), or otherwise specified |
| Sensing | True RMS |
| Transient Protection | 6.5 kV (1.2/50 μs surge) for all models |
| APO | Timing: Idle for 30 minutes Consumption: Typical 190 μA |
| Power Consumption | Typical 11 mA for ACA/DCA and 2.9 mA for other functions |
| Clamp-On Jaws | DC 1000 A or AC 800 A RMS continuous + and COM terminals (all functions): 600 VDC/VAC RMS |
| Jaw Opening and Conductor Diameter | 1.96" (50 mm) maximum |
| Dimension | 8.93 x 3.07 x 1.57"(227 x 78 x 40 mm) |
| Weight | 0.63 lbs (290 g) approximately |
