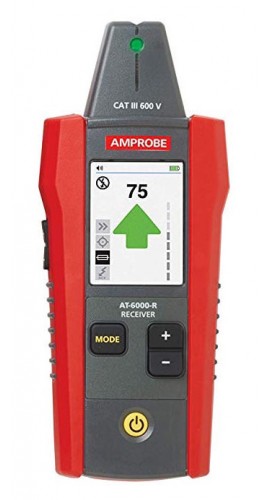

The receiver detects signals in wires and cables either through active tracing (with the transmitter) or passive tracing (without the transmitter). In hard-to-reach areas, the receiver’s tip sensor can be used to trace wires in corners, tight spaces, and junction boxes.
The receiver detects signals in wires and cables either through active tracing (with the transmitter) or passive tracing (without the transmitter). In hard-to-reach areas, the receiver’s tip sensor can be used to trace wires in corners, tight spaces, and junction boxes.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Wire Tracers category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
Range Detection (Open Air) |
Tip sensor (Energized) Maximum distance via air: Up to 20' (6.1 m) Pinpointing: Approximately 1.97" (5 cm) Tip sensor (De-energized) Max distance via air: up to 14.7' (4.5 m) Pinpointing: Approximately 1.97" (5 cm) NCV detection (40 to 400 Hz) Maximum sensitivity: 90 V up to 6.56' (2 m) Minimum sensitivity: 600 V up to 0.39" (1 cm) |
| Operating Voltage | 0 to 600 V AC/DC |
| Operating Frequency | Energized: 6.25 kHz De-Energized: 32.768 kHz |
| Measurement Category | CAT III 600 V |
| Signal Indications | Numeric, bar graph display and audible beep |
| Response Time | Tip Sensor (energized/de-energized): 500 ms NCV: 500 ms Battery voltage monitoring: 5 sec |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions | 7.2 x 2.95 x 1.69" (183 x 75 x 43 mm) |
| Weight | 1.25 lb (0.57 kg) |
