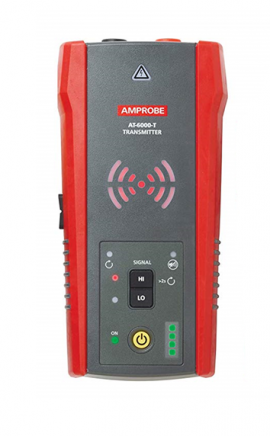

The transmitter works on energized and de-energized electrical environments. It features high and low signals, as well as loop modes. The breaker identification component eliminates the confusion of multiple false positives by identifying the one correct breaker or fuse with the highest recorded signal.
The transmitter works on energized and de-energized electrical environments. It features high and low signals, as well as loop modes. The breaker identification component eliminates the confusion of multiple false positives by identifying the one correct breaker or fuse with the highest recorded signal.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Wire Tracers category for similar products.
Or let's do a search and help you find what you need:
Features
Applications
| Current Output of Signal (Typical) | |
| Energized Circuit | HI mode: 60 mA RMS |
De-Energized Circuit | HI mode: 130 mA RMS Loop mode: 160 mA RMS |
| Signal Voltage Output (Nominal) | |
| De-Energized Circuit | HIGH: 33V RMS, 140 Vp-p With CT-400: loop model: 31 V RMS, 120 Vp-p |
| General Specifications | |
| Operating Voltage | 0 to 600 V AC/DC |
| Operating Frequency | Energized: 6.25 kHz De-Energized: 32.768 kHz |
| Measurement Category | CAT III 600 V |
| Response Time | Line voltage monitoring: 1 sec Battery voltage monitoring: 5 sec |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Signal Indications | LEDs |
| Dimensions | 7.2 x 3.66 x 1.97" (183 x 93 x 50 mm) |
| Weight | 1.25 lb (0.57 kg) |
