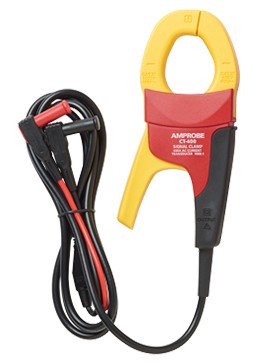

Features a measurement category of CAT IV 600 V, CAT III 1000 V, and an operating voltage of 0 to 1000 V AC, and is for use with the AT-6010 Advanced Wire Tracer Kit.
Features a measurement category of CAT IV 600 V, CAT III 1000 V, and an operating voltage of 0 to 1000 V AC, and is for use with the AT-6010 Advanced Wire Tracer Kit.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
| Measurement Category | CAT IV 600 V, CAT III 1000 V |
| Operating | Voltage: 0 to 1000 V AC Frequency: Wire tracing: 32.768 kHz AC current measurement: 45 to 400 Hz |
| Response Time | Instantaneous |
| Current Output of Signal (Typical) | 1 mA/A for AC current measurement with multimeter |
| Signal Voltage Output (Nominal) | De-energized circuit: 2.4 V RMS, 24 Vp-p |
| Environmental Conditions | Temperature: 32 to 122°F (0 to 50°C) Altitude: 0 to 6561' (2000 m) Humidity: 95%: 50 to <86°F (10 to <30°C)<br> 75%: 86 to <104°F (30 to <40°C)<br> 45%: 104 to <122°F (40 to <50°C)</td> |
| Storage Temperature and Humidity | -4 to 158°F (-20 to 70°C), <95% RH</td> |
| Pollution Degree | 2 |
| IP Rating | IP 40 |
| Drop Test | 3.28' (1 m) |
| Maximum Conductor Size | 1.26" (32 mm) |
| Certifications | CSA, CE |
| Dimensions | Approximately 5.9 x 2.75 x 1.18" (150 x 70 x 30 mm) |
| Weight | Approximately 0.25 lbs (0.114 kg) |
