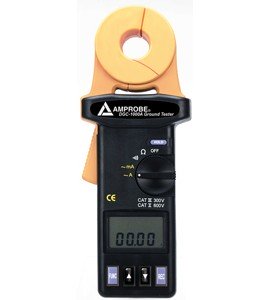

Designed for use by electricians and electrical contractors, measures ground resistance, current, and continuity in multi-grounded electrical systems. This true RMS (root mean square) meter provides accurate readings when measuring linear or non-linear loads where the current or voltage has a sinusoidal or nonsinusoidal waveform. The clamp-on head enables the user to measure resistance on a ground rod in a multi-ground system without the use of auxiliary ground rods and without disconnecting the other grounds.
Features
| Conductor size | Approx. 0.9 in (2.3 cm) |
| Display type | 4 digits 9999 counts LCD |
| Range selection | Auto |
| Overload indication | OL |
| Ground resistance range | 0.025 to 1,500 ohms |
| Power consumption | 40 mA |
| Low battery indication | Yes |
| Battery life | 3000 measurements |
| Sampling time | 0.5 seconds |
| Operating temperature | 14 to 122 °F (0 to 50 °C) |
| Conductor size | Approx. 0.9 in (2.3 cm) |
| Display type | 4 digits 9999 counts LCD |
| Range selection | Auto |
| Overload indication | OL |
| Ground resistance range | 0.025 to 1,500 ohms |
| Power consumption | 40 mA |
| Low battery indication | Yes |
| Battery life | 3000 measurements |
| Sampling time | 0.5 seconds |
| Operating temperature | 14 to 122 °F (0 to 50 °C) |
