Designed for professional use in harsh environments. The meter is unusually rugged and reliable in everyday heavy use applications. The meter is made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts. Built of tough, fire-retardant thermoplastic resistant to grease and chemical spills, with all sensitive components shock-mounted for a drop resistant to at least eight feet.
Designed for professional use in harsh environments. The meter is unusually rugged and reliable in everyday heavy use applications. The meter is made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts. Built of tough, fire-retardant thermoplastic resistant to grease and chemical spills, with all sensitive components shock-mounted for a drop resistant to at least eight feet.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Digital Multimeters category for similar products.
Or let's do a search and help you find what you need:

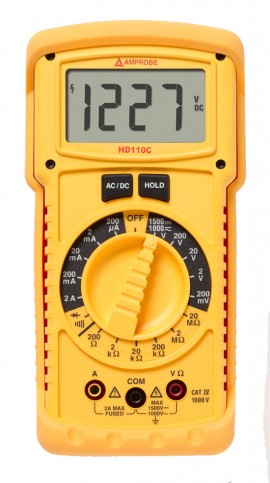

The Wavetek Amprobe Heavy Duty (HD) Series 100 digital multimeters are designed for industrial conditions. These multimeters are built of fire-retardant plastic. All sensitive components are shock-mounted. Waterproof construction prevents dirt and moisture from entering the case.
Features
| DC Voltage | |
| Range | 200 mV, 2 V, 20 V, 200 V, 1500 V |
| Accuracy | ±(0.1% rdg + 1 dgt) |
| NMRR | >60 db |
| CMRR | >60 db (49 Hz) |
| AC Voltage | |
| Range | 200 mV, 2 V, 20 V (45 to 2 kHz) 200 mV, 2 V, 20 V (2 to 5 kHz) 200 V (45 Hz to 1 kHz) 1000 V (45 to 500 Hz) 1000 V (500 to 1000 Hz) |
| Accuracy | ±(0.75% rdg + 3 dgts) ±(1.5% rdg + 5 dgts) ±(0.75% rdg + 3 dgts) ±(0.75% rdg + 3 dgts) ±(1.5% rdg + 5 dgts) |
| AC Conversion | Average sensing, rms indicating |
| Resolution | 0.1 mV in 200 mV range |
| Input Impedance | 10 MΩ (dc) 10 MΩ//75 pF (ac) |
| DC Current | |
| Range | 200 µA, 2 mA, 20 mA, 200 mA, 2 A 10 A |
| Accuracy | ±(0.35% rdg + 1 dgt) ±(1.0% rdg + 1 dgt) |
| AC Current | |
| Range | 200 µA, 2 mA, 20 mA, 200 mA, 2 A (45 Hz to 2 kHz) 10 A (45 to 400 Hz) |
| Accuracy | ±(0.9% rdg + 3 dgts) ±(1.5% rdg + 3 dgts) |
| AC Conversion Type | Average sensing, rms indicating |
Click on a category to view a selection of compatible accessories with the Amprobe HD110C Heavy Duty Multimeter.
| DC Voltage | |
| Range | 200 mV, 2 V, 20 V, 200 V, 1500 V |
| Accuracy | ±(0.1% rdg + 1 dgt) |
| NMRR | >60 db |
| CMRR | >60 db (49 Hz) |
| AC Voltage | |
| Range | 200 mV, 2 V, 20 V (45 to 2 kHz) 200 mV, 2 V, 20 V (2 to 5 kHz) 200 V (45 Hz to 1 kHz) 1000 V (45 to 500 Hz) 1000 V (500 to 1000 Hz) |
| Accuracy | ±(0.75% rdg + 3 dgts) ±(1.5% rdg + 5 dgts) ±(0.75% rdg + 3 dgts) ±(0.75% rdg + 3 dgts) ±(1.5% rdg + 5 dgts) |
| AC Conversion | Average sensing, rms indicating |
| Resolution | 0.1 mV in 200 mV range |
| Input Impedance | 10 MΩ (dc) 10 MΩ//75 pF (ac) |
| DC Current | |
| Range | 200 µA, 2 mA, 20 mA, 200 mA, 2 A 10 A |
| Accuracy | ±(0.35% rdg + 1 dgt) ±(1.0% rdg + 1 dgt) |
| AC Current | |
| Range | 200 µA, 2 mA, 20 mA, 200 mA, 2 A (45 Hz to 2 kHz) 10 A (45 to 400 Hz) |
| Accuracy | ±(0.9% rdg + 3 dgts) ±(1.5% rdg + 3 dgts) |
| AC Conversion Type | Average sensing, rms indicating |
Click on a category to view a selection of compatible accessories with the Amprobe HD110C Heavy Duty Multimeter.
