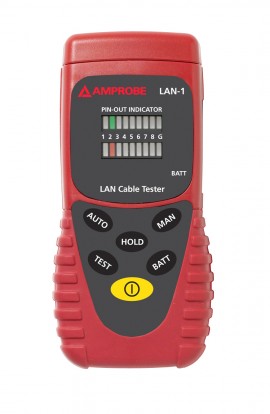

The cable tester provides a quick go/no-go LED of the wiring and connection of items under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.
The cable tester provides a quick go/no-go LED of the wiring and connection of items under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.
Features
| Cable Continuity | |
| Maximum Line Length | > 300 m |
| Connector Types | RJ45, BNC |
| General Specifications | |
| Display | 18 LEDs: 9 red and 9 green, 9 LEDs on remote module |
| Battery | Standard 9 V battery, NEDA 1604 A, JIS 006 P, IEC 6F22 |
| Battery Life | Approximately 20 hours (alkaline battery) |
| Low Battery Indicator | The LED indicator will not turn ON when BATT button is pushed |
| Temperature | Operating: 32 to 104°F (0 to 40°C), 10 to 70% RH Storage: 14 to 140°F (-10 to 60°C), 10 to 90% RH |
| Altitude | 2000 m, indoor operation |
| Dimensions | 5.1 x 2.2 x 1.5" (130 x 56 x 38 mm) |
| Weight | 0.6 lbs (1.26 kg) |
