The lamp tester is a pocket-sized tool that takes the guesswork out of troubleshooting fluorescent lighting systems. It features a highly responsive 48" antenna, which saves trips up and down the ladder.
The lamp tester is a pocket-sized tool that takes the guesswork out of troubleshooting fluorescent lighting systems. It features a highly responsive 48" antenna, which saves trips up and down the ladder.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Light Meters category for similar products.
Or let's do a search and help you find what you need:
Troubleshoot bulbs, pins and voltage with one pocket sized tool.

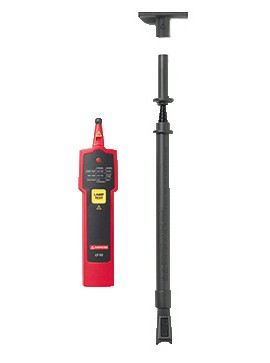

The amprobe LT-10 Lamp Tester is a pocket-sized tool that takes the guesswork out of troubleshooting fluorescnet lighting systems. Quickly determine by process of eliminaion, whether its the bulb, pins, voltage or ballast. The highly responsive 48" antenna, will save you trips up and down the ladder. The LT-10 Lamp Tester will go from yoru pocket to answers in seconds.
| Test Voltage | Approximately 3 kV / 280 kHz |
| Field Strength | Approximately 100 μV/m at 260 to 300 kHz |
| Maximum Antenna Length | 48" |
| Filament Test | T2, T4, T5, T8, T9, T10, T12 |
| VolTect Non-Contact Voltage Detection | AC 90 V to AC 600 V, 50/60 Hz CAT II 300 V, CAT I 600 V |
| Non-Contact Voltage Sensitivity with Probe Tip (Typical) | LED illuminates and beeps at approximately 0.12" (3 mm) distance from a wire carrying 120 VAC LED illuminates and beeps at approximately 0.2" (5 mm) distance from a wire carrying 230 VAC |
| Drop Proof | 36" (914.4 mm) |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) ≤ 85% RH Storage: 14 to 122°F (-10 to 50°C) ≤ 85% RH |
| Operating Altitude | Up to 2000 m |
| Battery | One 9 V battery, 6LR61 / 6LF22 / MN1604 or equivalent Life: Up to 500 tests (alkaline typically) |
| Dimensions | 6.69 x 1.57 x 0.94in (170 x 40 x 24 mm) without antenna |
| Weight | 0.18 lbs (80 g) with battery installed, excluding 48” antenna |
| Test Voltage | Approximately 3 kV / 280 kHz |
| Field Strength | Approximately 100 μV/m at 260 to 300 kHz |
| Maximum Antenna Length | 48" |
| Filament Test | T2, T4, T5, T8, T9, T10, T12 |
| VolTect Non-Contact Voltage Detection | AC 90 V to AC 600 V, 50/60 Hz CAT II 300 V, CAT I 600 V |
| Non-Contact Voltage Sensitivity with Probe Tip (Typical) | LED illuminates and beeps at approximately 0.12" (3 mm) distance from a wire carrying 120 VAC LED illuminates and beeps at approximately 0.2" (5 mm) distance from a wire carrying 230 VAC |
| Drop Proof | 36" (914.4 mm) |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) ≤ 85% RH Storage: 14 to 122°F (-10 to 50°C) ≤ 85% RH |
| Operating Altitude | Up to 2000 m |
| Battery | One 9 V battery, 6LR61 / 6LF22 / MN1604 or equivalent Life: Up to 500 tests (alkaline typically) |
| Dimensions | 6.69 x 1.57 x 0.94in (170 x 40 x 24 mm) without antenna |
| Weight | 0.18 lbs (80 g) with battery installed, excluding 48” antenna |
