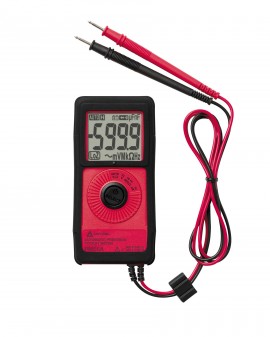

Compact and versatile, this multimeter features AutoTect, which lets this meter know if it is measuring AC or DC volts or resistance with no user interface. In addition, this pocket-sized multimeter offers VolTect, a built-in, non-contact voltage detection feature for AC voltages.
Compact and versatile, this multimeter features AutoTect, which lets this meter know if it is measuring AC or DC volts or resistance with no user interface. In addition, this pocket-sized multimeter offers VolTect, a built-in, non-contact voltage detection feature for AC voltages.
Features
Applications
| DC Voltage | Range and accuracy 6 V: ±(0.5% + 3 dgt) 60 V: ±(1% + 5 dgt) 450 V: ±(1.2% +5 dgt) Input impedance: AutoTect™ Lo-Z V DC: 833 kΩ (4.2 kΩ when displaying AUTO), 90 pF nominal MRR: >30 dB at 50/60 Hz CMRR: >100 dB at DC, 50/60 Hz; Rs = 1 kΩ V DC AutoTect™ threshold: >1.2 V DC or <-0.6 V DC nominal; Hi-Z V DC only |
| AC Voltage (50 to 60 Hz) | Range: 6, 60, 450, 600 V Accuracy: ±(1.5% + 5 dgt) CMRR: >60 dB at DC to 60 Hz, Rs = 1 kΩ Input impedance: AutoTect™ Lo-Z V AC: 160 kΩ, 160 pF nominal Hi-Z ACV: 5 MΩ, 90pF nominal ACV AutoTect™ threshold: >1.5 V AC (50/60 Hz) nominal |
| Capacitance | Range1: 100, 1000 nF, 10, 100 µF3 Accuracy2: ±(3.5% + 6 dgt)4 1Accuracy below 50 nF is not specified 2Accuracies with film capacitor or better 3Updates >1 minute on large values 4Specified with battery voltage above 2.8 V (half full battery). Accuracy decreases gradually to 12% at a low battery warning voltage of approximately 2.4 V |
| Resistance | Range1: 600 Ω, 6, 60, 600 kΩ, 6 MΩ Accuracy2: ±(2% + 6 dgt) ±(1.2% + 6 dgt) ±(1% + 4 dgt) ±(2% + 4 dgt) Open circuit voltage: 0.4 V DC typical 1AutoTect™ is for 6 kΩ to 6 MΩ ranges 2Add 40 dgt to specified accuracy while reading is below 20% of range |
| Frequency | Range1: 10 Hz to 30 kHz2 (specified at <20 V sine rms); 10 to 999.9 Hz (specified at <600 V sine rms) Accuracy: ±(0.5% + 4 dgt) 1Sensitivity (sine rms): Hz in auto-VΩ position: >3 V 2Line-level Hz in V position At 6 V AC range: >3 V At 60 V AC range: >6 V At 600 V AC range: >60 V |
| DC µA Current | Range: 400, 2000 µA Accuracy: ±(1.5% + 3 dgt), ±(1.2% + 3 dgt) Burden voltage: 6 mV/µA |
| AC µA Current | Range: 400, 2000 µA Accuracy: ±(2% + 3 dgt), ±(1.5% + 3 dgt) Burden voltage: 6 mV/µA |
| Voltect™ | Typical voltage (bar graph indication): 20 to 80 V (-) 45 to 125 V (--) 70 to 215 V (---) 120 to 285 V (----) Above 170 V (-----) Indication: Bar graph segments and audible beep tones proportional to field strength Detection frequency: 50/60 Hz Detection antenna: Top left corner of the meter |
| Audible Continuity Tester (600 Ω range) | Open circuit voltage: 0.4 V DC typical Audible threshold: >175 Ω ±125 Ω |
| Diode Test | Test current: 0.48 mA typical Open circuit voltage: <1.6 V DC |
| Display and Update Rate | 3-5/6 digits 6000 counts; Updates 5 per second nominal |
| Sensing | Average sensing |
| Overload Protection | 600 V DC and V AC rms |
| APO | Consumption (typical): 2.2 µA Timing: Idle for 3 minutes |
| Environmental | Operating temperature: 32 to 104°F (0 to 40°C) Storage temperature: -4 to 140°F (-20 to 60°C), <80% RH (with battery removed) Relative humidity: Maximum 80% RH up to 33.8°F (31°C), decreasing linearly to 50% RH at 104°F (40°C) Altitude: Operating below 6561.68' (2000 m) Temperature coefficient: Nominal 0.15 x (specified accuracy)/°C at (32 to 64.4°F [0 to 18°C] or 82.4 to 104°F [28 to 40°C]), or otherwise specified |
| Low Battery | Below approximately 2.4 V |
| Power | Supply: 3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC) Comsumption (typical): 6 mA for voltage functions on Auto - V Ω position and 2 mA for other functions |
| Agency Approvals | CE, CULUS |
| Safety | Meets IEC61010-1, UL61010B-1, CAN/CSA-C22.2 No. 1010.1-92, CAT II 600 V and CAT III 300 V, Pollution Degree 2, Class 2 |
| EMC | Meets EN61326 (1997, 1998/A1), EN61000- 4-2 (1995), and EN61000-4-3 (1996) |
| Dimensions | 4.5 x 2.1 x 0.4" (113 x 53 x 10.2 mm) |
| Weight | Approximately 2.75 oz (78 g) |
| DC Voltage | Range and accuracy 6 V: ±(0.5% + 3 dgt) 60 V: ±(1% + 5 dgt) 450 V: ±(1.2% +5 dgt) Input impedance: AutoTect™ Lo-Z V DC: 833 kΩ (4.2 kΩ when displaying AUTO), 90 pF nominal MRR: >30 dB at 50/60 Hz CMRR: >100 dB at DC, 50/60 Hz; Rs = 1 kΩ V DC AutoTect™ threshold: >1.2 V DC or <-0.6 V DC nominal; Hi-Z V DC only |
| AC Voltage (50 to 60 Hz) | Range: 6, 60, 450, 600 V Accuracy: ±(1.5% + 5 dgt) CMRR: >60 dB at DC to 60 Hz, Rs = 1 kΩ Input impedance: AutoTect™ Lo-Z V AC: 160 kΩ, 160 pF nominal Hi-Z ACV: 5 MΩ, 90pF nominal ACV AutoTect™ threshold: >1.5 V AC (50/60 Hz) nominal |
| Capacitance | Range1: 100, 1000 nF, 10, 100 µF3 Accuracy2: ±(3.5% + 6 dgt)4 1Accuracy below 50 nF is not specified 2Accuracies with film capacitor or better 3Updates >1 minute on large values 4Specified with battery voltage above 2.8 V (half full battery). Accuracy decreases gradually to 12% at a low battery warning voltage of approximately 2.4 V |
| Resistance | Range1: 600 Ω, 6, 60, 600 kΩ, 6 MΩ Accuracy2: ±(2% + 6 dgt) ±(1.2% + 6 dgt) ±(1% + 4 dgt) ±(2% + 4 dgt) Open circuit voltage: 0.4 V DC typical 1AutoTect™ is for 6 kΩ to 6 MΩ ranges 2Add 40 dgt to specified accuracy while reading is below 20% of range |
| Frequency | Range1: 10 Hz to 30 kHz2 (specified at <20 V sine rms); 10 to 999.9 Hz (specified at <600 V sine rms) Accuracy: ±(0.5% + 4 dgt) 1Sensitivity (sine rms): Hz in auto-VΩ position: >3 V 2Line-level Hz in V position At 6 V AC range: >3 V At 60 V AC range: >6 V At 600 V AC range: >60 V |
| DC µA Current | Range: 400, 2000 µA Accuracy: ±(1.5% + 3 dgt), ±(1.2% + 3 dgt) Burden voltage: 6 mV/µA |
| AC µA Current | Range: 400, 2000 µA Accuracy: ±(2% + 3 dgt), ±(1.5% + 3 dgt) Burden voltage: 6 mV/µA |
| Voltect™ | Typical voltage (bar graph indication): 20 to 80 V (-) 45 to 125 V (--) 70 to 215 V (---) 120 to 285 V (----) Above 170 V (-----) Indication: Bar graph segments and audible beep tones proportional to field strength Detection frequency: 50/60 Hz Detection antenna: Top left corner of the meter |
| Audible Continuity Tester (600 Ω range) | Open circuit voltage: 0.4 V DC typical Audible threshold: >175 Ω ±125 Ω |
| Diode Test | Test current: 0.48 mA typical Open circuit voltage: <1.6 V DC |
| Display and Update Rate | 3-5/6 digits 6000 counts; Updates 5 per second nominal |
| Sensing | Average sensing |
| Overload Protection | 600 V DC and V AC rms |
| APO | Consumption (typical): 2.2 µA Timing: Idle for 3 minutes |
| Environmental | Operating temperature: 32 to 104°F (0 to 40°C) Storage temperature: -4 to 140°F (-20 to 60°C), <80% RH (with battery removed) Relative humidity: Maximum 80% RH up to 33.8°F (31°C), decreasing linearly to 50% RH at 104°F (40°C) Altitude: Operating below 6561.68' (2000 m) Temperature coefficient: Nominal 0.15 x (specified accuracy)/°C at (32 to 64.4°F [0 to 18°C] or 82.4 to 104°F [28 to 40°C]), or otherwise specified |
| Low Battery | Below approximately 2.4 V |
| Power | Supply: 3 V standard button battery x 1 (IEC-CR2032; ANSI-NEDA-5004LC) Comsumption (typical): 6 mA for voltage functions on Auto - V Ω position and 2 mA for other functions |
| Agency Approvals | CE, CULUS |
| Safety | Meets IEC61010-1, UL61010B-1, CAN/CSA-C22.2 No. 1010.1-92, CAT II 600 V and CAT III 300 V, Pollution Degree 2, Class 2 |
| EMC | Meets EN61326 (1997, 1998/A1), EN61000- 4-2 (1995), and EN61000-4-3 (1996) |
| Dimensions | 4.5 x 2.1 x 0.4" (113 x 53 x 10.2 mm) |
| Weight | Approximately 2.75 oz (78 g) |
