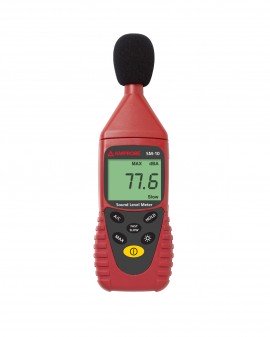

The sound meter is for checking compliance with safety regulations and perform acoustic analysis by safety engineers, health, industrial and safety offices, as well as quality control.
The sound meter is for checking compliance with safety regulations and perform acoustic analysis by safety engineers, health, industrial and safety offices, as well as quality control.
Features
| Electrical (Audio) | |
| Dynamic Range | 50 dB |
| Resolution | 0.1 dB, Display Update: 0.5 second |
| Time Weighting | FAST (125 mS), SLOW (1 second) |
| Frequency Range | 31.5 Hz to 8 kHz |
| Measuring Level Range | A Weighting: 30 to 130 dB C Weighting: 35 to 130 dB |
| Accuracy | ± 1.5 dB |
| Calibration Cycle | 1 year |
| Temperature / Humidity | |
| Operation | 41 to 104°F (5 to 40 °C); < 80% RH |
| Storage | 14 to 140°F (-10 to 60 °C); < 70% RH |
| General Specifications | |
| Display | 4 digits LCD |
| Microphone | ½" electret condenser microphone |
| Power Supply | 9 V NEDA 1604, IEC 6F22, JIS 006P battery |
| Power Life | Approximately 50 hrs (alkaline battery) |
| Environment | Indoor operation, < 2000 m |
| Dimensions | 7.8 x 2.2 x 1.5" (200 x 55 x 38 mm) |
| Weight | 0.5 lbs (233 g) including battery |
| Electrical (Audio) | |
| Dynamic Range | 50 dB |
| Resolution | 0.1 dB, Display Update: 0.5 second |
| Time Weighting | FAST (125 mS), SLOW (1 second) |
| Frequency Range | 31.5 Hz to 8 kHz |
| Measuring Level Range | A Weighting: 30 to 130 dB C Weighting: 35 to 130 dB |
| Accuracy | ± 1.5 dB |
| Calibration Cycle | 1 year |
| Temperature / Humidity | |
| Operation | 41 to 104°F (5 to 40 °C); < 80% RH |
| Storage | 14 to 140°F (-10 to 60 °C); < 70% RH |
| General Specifications | |
| Display | 4 digits LCD |
| Microphone | ½" electret condenser microphone |
| Power Supply | 9 V NEDA 1604, IEC 6F22, JIS 006P battery |
| Power Life | Approximately 50 hrs (alkaline battery) |
| Environment | Indoor operation, < 2000 m |
| Dimensions | 7.8 x 2.2 x 1.5" (200 x 55 x 38 mm) |
| Weight | 0.5 lbs (233 g) including battery |
