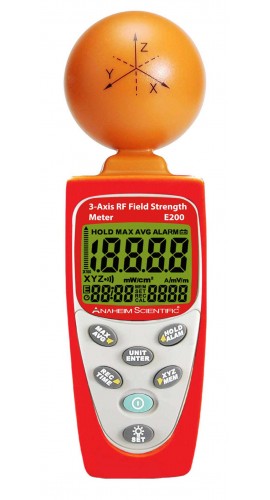

Compact, durable, and easy to use, this 3-axis RF field strength meter is for measuring and monitoring radio-frequency electromagnetic field strength.
Compact, durable, and easy to use, this 3-axis RF field strength meter is for measuring and monitoring radio-frequency electromagnetic field strength.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
| Display Type | Liquid-crystal (LCD), 4.5 digits, maximum reading 19999 |
| Measurement Method | Digital, triaxial measurement |
| Directional Type | Isotropic (triaxial) |
| Range Selection | One continuous range |
| Resolution | 0.1 mV/m, 0.1 µA/m, 0.001 µW/m2, 0.001 µW/cm2 |
| Setting Time | Typically 1.5 s (0 to 90% measurement value) |
| Sample Rate | 3 times per second |
| Units | mV/m, V/m, µA/m, mA/m, µW/m2, mW/m2, µW/cm2 |
| Display Value | Instantaneous measured value, maximum value, average value, or maximum average value |
| Audible Alarm | Buzzer |
| Alarm Function | Adjustable threshold with ON / OFF |
| Calibration Factor | Adjustable |
| Data Storage/Recall | 200 Data Sets |
| Batteries | 9 V |
| Battery Life | Approximate 15 h |
| Auto Power-Off | Default time 15 minutes. Adjustable threshold 0~99 minutes |
| Dimensions | 2.4 x 2.4 x 7.7" (60 x 60 x 195 mm) |
| Weight | 0.44 lbs (200 g) (including battery) |
| Display Type | Liquid-crystal (LCD), 4.5 digits, maximum reading 19999 |
| Measurement Method | Digital, triaxial measurement |
| Directional Type | Isotropic (triaxial) |
| Range Selection | One continuous range |
| Resolution | 0.1 mV/m, 0.1 µA/m, 0.001 µW/m2, 0.001 µW/cm2 |
| Setting Time | Typically 1.5 s (0 to 90% measurement value) |
| Sample Rate | 3 times per second |
| Units | mV/m, V/m, µA/m, mA/m, µW/m2, mW/m2, µW/cm2 |
| Display Value | Instantaneous measured value, maximum value, average value, or maximum average value |
| Audible Alarm | Buzzer |
| Alarm Function | Adjustable threshold with ON / OFF |
| Calibration Factor | Adjustable |
| Data Storage/Recall | 200 Data Sets |
| Batteries | 9 V |
| Battery Life | Approximate 15 h |
| Auto Power-Off | Default time 15 minutes. Adjustable threshold 0~99 minutes |
| Dimensions | 2.4 x 2.4 x 7.7" (60 x 60 x 195 mm) |
| Weight | 0.44 lbs (200 g) (including battery) |
