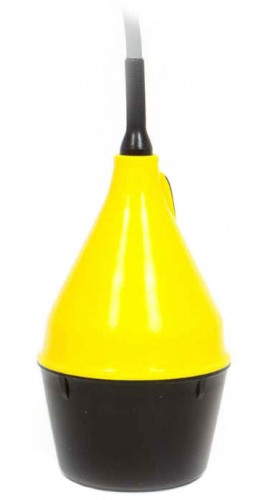

Image is for reference only, refer to product info for complete details.
The float allows up to two switch points and features hysteresis fill control (pump up), and a standard temperature of 130°F (54°C). It provides high chemical compatibility, a strong cable, and durable components that last longer.
The float allows up to two switch points and features hysteresis fill control (pump up), and a standard temperature of 130°F (54°C). It provides high chemical compatibility, a strong cable, and durable components that last longer.
Function
Float switches open and close contacts to control whether or not signal current can pass through, they work like a standard light switch. They are either normally closed, meaning current is flowing, or normally open, meaning current is not flowing. The "normal" state is when the float switch is down, resting on it's cable or float stop.
Features
Versatile and Reliable Float Switch
Applications
| Switching Differential | Minimum: 10" (25.4 cm) Maximum: 50" (127 cm) |
| Maximum Liquid Temperature | Standard: 130°F (54°C) Optional: 175°F (80°C) |
| Protection Rating | IP67, NEMA 6 |
| Programming | N/A 19 control configurations available |
| Minimum Fluid Specific Gravity | Standard Float: 0.7 Mini Float: 0.95 |
| Standard Cable Lengths | 16' (5 m) 49' (15 m) |
| Weight | 1.3 to 4 lbs (varies on type) |
| Maximum Voltage | 250 V AC or DC |
| Material | Float: Polypropylene Cable: Standard - PVC, Optional - Rubber, PTFE (Teflon®), TPU (Oil resistant) |
Click on a category to view a selection of compatible accessories with the APG KA-M2L Multi-Level Cable Float Switch, two switch, hysteresis.
