Image is for reference only, refer to product info for complete details.

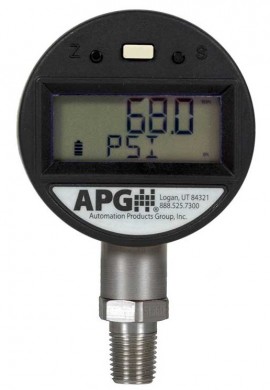

Features tare, peak hold, max/min, and more, the general-purpose digital pressure gauge is ideal for indoor use. Fully programmable, with a large 5-digit display and an easy-to-navigate menu, the pressure gauge provides accuracy and measurements you can trust.
Features tare, peak hold, max/min, and more, the general-purpose digital pressure gauge is ideal for indoor use. Fully programmable, with a large 5-digit display and an easy-to-navigate menu, the pressure gauge provides accuracy and measurements you can trust.
Built for accurate pressure measurements, the digital pressure gauge offers precise results for viewing angle, lack of resolution, vibration, drift, and much more.
Features
Applications
| Performance | |
| Stability | One year zero drift: <±1% FS |
| Thermal Zero Shift | ±0.04% FS/ °F |
| Thermal Sensitivity Shift | ±0.04% FS/ °F |
| Life | 10 million cycles minimum |
| Adjustments | Auto zero, tare |
| Electrical | |
| External Power Option | 9 to 28 VDC |
| 6-Pin Connector | R04-R6M |
| Environmental | |
| Temperature | Compensated 20 to 130°F (-7 to 54°C) Storage: -40 to 160°F (-40 to 71°C) Operating: 0 to 160°F (-18 to 71°C) |
| General Specifications | |
| Display | 5 digit LCD, 0.4" digits |
| Injected Molded Case | EMI-X ® PDX-W-88341 |
| Connection | 1.25” (31.8 mm) |
| Size | 2.66 x 1.55” (67.6 x 39.4 mm) |
| Performance | |
| Stability | One year zero drift: <±1% FS |
| Thermal Zero Shift | ±0.04% FS/ °F |
| Thermal Sensitivity Shift | ±0.04% FS/ °F |
| Life | 10 million cycles minimum |
| Adjustments | Auto zero, tare |
| Electrical | |
| External Power Option | 9 to 28 VDC |
| 6-Pin Connector | R04-R6M |
| Environmental | |
| Temperature | Compensated 20 to 130°F (-7 to 54°C) Storage: -40 to 160°F (-40 to 71°C) Operating: 0 to 160°F (-18 to 71°C) |
| General Specifications | |
| Display | 5 digit LCD, 0.4" digits |
| Injected Molded Case | EMI-X ® PDX-W-88341 |
| Connection | 1.25” (31.8 mm) |
| Size | 2.66 x 1.55” (67.6 x 39.4 mm) |
