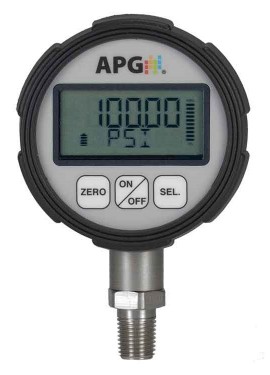

Image is for reference only, refer to product info for complete details.
Rugged and environmentally sealed, the digital pressure gauge is ideal for accurate pressure measurements in indoor and outdoor settings. With a large 5-digit display and many standard features, the unit offers ease of operation and a high accuracy rate of 0.25%.
Rugged and environmentally sealed, the digital pressure gauge is ideal for accurate pressure measurements in indoor and outdoor settings. With a large 5-digit display and many standard features, the unit offers ease of operation and a high accuracy rate of 0.25%.
Ideal for a variety of applications, this digital pressure gauge offers user-selectable units of measure, ranges from vacuum up to 30,000 psi and tare, peak hold, and max/min functions.
Features
Applications
| Performance | |
| Stability | One year zero drift: <±1% FS |
| Thermal Zero Shift | ±0.04% FS/ °F |
| Thermal Sensitivity Shift | ±0.04% FS/ °F |
| Life | 10 million cycles minimum |
| Adjustments | Auto zero, tare |
| Overpressure | Proof: 1.5x full scale Burst: 3x full scale |
| Electrical | |
| 6-Pin Connector | R04-R6M |
| Environmental | |
| Temperature | Compensated 20 to 130°F (-7 to 54°C) Storage: -40 to 160°F (-40 to 71°C) Operating: 0 to 160°F (-18 to 71°C) |
| General Specifications | |
| Display | 5 digit LCD, 0.4" digits |
| Injected Molded Case | EMI-X ® PDX-W-88341 |
| Connection | 1.47” (37.3 mm) |
| Size | 3.25 x 1.6” (82.6 x 40.6 mm) |
| Weight | 0.36 lb (163 g) |
