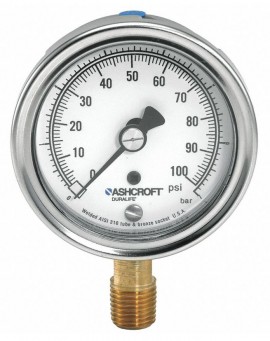

Image is for reference only, refer to product info for complete details.
Configure This Product!
The pressure gauge with liquid filled case offers exceptional quality, durability, and performance. An ideal choice for satisfying most applications and installation requirements.
The pressure gauge with liquid filled case offers exceptional quality, durability, and performance. An ideal choice for satisfying most applications and installation requirements.
Features
Applications
| Accuracy | ASME B40.100, Grade 1A, +1.5% of Span |
| Dial Size | 2½" (63mm) |
| Range | 0 to 600 psi |
| Wetted Materials | |
| Tube | 316L SS Tube |
| Process Connection | Aluminum Bronze Socket |
| Non Wetted Materials | |
| Window | Polycarbonate |
| Dial | Black Figures on White Background, Aluminum |
| Pointer | Black, Aluminum, Adjustable |
| Movement | PowerFlex Movement Bottom Plate – 304 SS Upper Plate – 304 SS Pin – 304 SS Hairspring Assembly – 304 SS Pinion – 304 SS Segment – Glass Filled Polyester |
| Case | 304 SS |
| Ring | 304 SS |
| Process Connection Location | Lower |
| Process Connection Sizes | ¼ NPT |
| Dampening | Glycerin Case Fill |
| Weather Protection | Plug Closed: IP65 Plug Vented: IP54 Plug Closed: NEMA 4X |
| Approvals | CRN, RoHS, PED |
