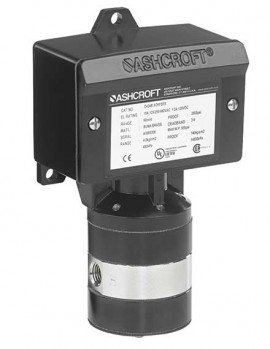

Ideal for pressure control, shutdown or alarm operations, this D4 differential pressure switch is designed for lasting reliability. The switch comes with a NEMA 4X epoxy-coated aluminum enclosure and pressure range of 100 inH2O.
Ideal for pressure control, shutdown or alarm operations, this D4 differential pressure switch is designed for lasting reliability. The switch comes with a NEMA 4X epoxy-coated aluminum enclosure and pressure range of 100 inH2O.
Features
Applications
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50°F from initial setpoint set at 70°F typical) |
| Enclosure Rating | NEMA 4X, IP66 |
| Enclosure Material | Epoxy coated aluminum |
| Diaphragm Material | Buna N |
| Pressure Connection | 1/4 NPT Female |
| Electrical Output | SPDT |
| Electrical Termination | 3/4 NPT Female |
| Ambient Temperature Range | -20 to 150°F (-28 to 65°C) |
| Process Temperature | 0 to 150°F (-17.8 to 65.6°C) |
| Pressure Range | 100"H2O |
