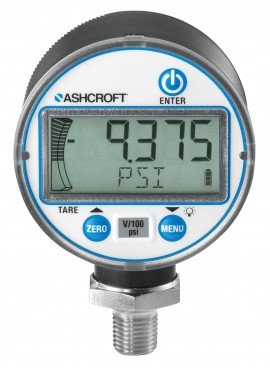

Image is for reference only, refer to product info for complete details.
Configure This Product!
2.5" diameter dial. Nine engineering units of measure plus one user programmable unit.
2.5" diameter dial. Nine engineering units of measure plus one user programmable unit.
Features
| Ranges | Vacuum to 25,000 psi |
| Accuracy | ±0.5% of span |
| Process Connection | 1/4" NPT lower |
| Wetted Parts | 17-4 PH stainless steel sensor 316 stainless steel socket |
| Proof Pressure | VAC - 2,000: 200% of span 3,000 to 5,000: 150% of span 7,500 to 25,000: 120% of span |
| Burst Pressure | VAC - 2,000: 800% of span 3,000 to 5,000: 500% of span 7,500 to 25,000: 300% of span |
| Display | 5 digit LCD, 0.48" high with backlight |
| Update Rate | 1Hz, 2Hz, 4Hz |
| Power Supply | 2 x "AA" alkaline batteries |
| Ranges | Vacuum to 25,000 psi |
| Accuracy | ±0.5% of span |
| Process Connection | 1/4" NPT lower |
| Wetted Parts | 17-4 PH stainless steel sensor 316 stainless steel socket |
| Proof Pressure | VAC - 2,000: 200% of span 3,000 to 5,000: 150% of span 7,500 to 25,000: 120% of span |
| Burst Pressure | VAC - 2,000: 800% of span 3,000 to 5,000: 500% of span 7,500 to 25,000: 300% of span |
| Display | 5 digit LCD, 0.48" high with backlight |
| Update Rate | 1Hz, 2Hz, 4Hz |
| Power Supply | 2 x "AA" alkaline batteries |
