This lightweight handheld combustion and emissions analyzer directly measures and displays Flue Gas Oxygen (O2), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature and optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2).
This lightweight handheld combustion and emissions analyzer directly measures and displays Flue Gas Oxygen (O2), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature and optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2).
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Busy technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency and perform emissions testing rely on Bacharachs PCA3. This lightweight handheld instrument is the industry's first advanced portable combustion analyzer with a full color graphic display for superior visibility and user-friendly interface. Super bright backlighting, zoom display feature, dimming mode function and the most sensor configuration in its class provides the user with best-in-class instrumentation.
Features
| Measured Ranges | |
| Ambient Air Temperature | -4 to 999°F (-20 to 316°C) |
| Stack Temperature | -4 to 2192°F (-20 to 650°C) |
| Oxygen (O2) | 0.1 to 20.9% |
| Carbon Monoxide (H2 comp) | 0 to 4,000 ppm |
| CO (High Range) | 4001 to 20,000 ppm |
| Nitric Oxide (NO) | 0 to 3000 ppm |
| Nitrogen Dioxide (NO2) | 0 to 500 ppm |
| Sulfur Dioxide (SO2) | 0 to 5000 ppm |
| Pressure/Draft | ±72 inwc |
| Calculated Ranges | |
| Combustion Efficiency (EFF) | 0.1 to 100% |
| Excess Air (EA) | 1.0 to 250% |
| CO (Dry Basis) | 0 to fuel dependent maximum |
| NOX (NO + NO2) | 0 to 3500ppm |
| NOX, CO, NO, NO2 & SO2 (Referenced to %O2) |
0 to 9999 ppm |
| Selectable Fuels | Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse, Digester gas |
| General Specifications | |
| Power Supply | 4 AA alkaline batteries |
| Dimensions | 9 x 3 x 2.5" (229 x 76 x 63mm) |
| Weight | 1.4 lb (0.6kg) |

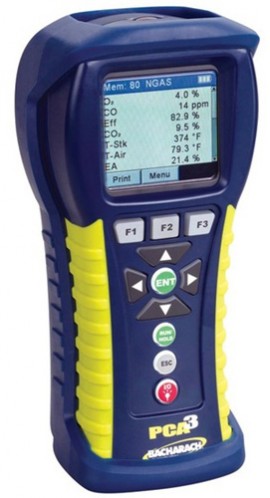

Click on a category to view a selection of compatible accessories with the Bacharach PCA3 235 with O2, CO low-range, NO and reporting kit (0024-8448).
