Compact design gas detector that pinpoints both small and large leaks. Features an operational status LED and long battery life, up to 14 hours.
Compact design gas detector that pinpoints both small and large leaks. Features an operational status LED and long battery life, up to 14 hours.

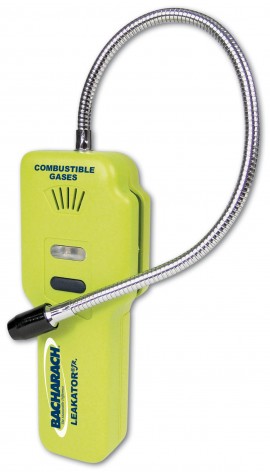

Measuring only 6" in length with a 12" flexible probe, Bacharach's Leakator Jr. is a low maintenance, easy-to-use portable combustible gas leak detector that is capable of pinpointing large and small leaks quickly with absolutely no calibration required. The Leakator Jr. is ideal for pinpointing combustible gas leaks; testing appliances in commercial, residential, and industrial applications; surveying gas pipelines; and inspecting valves, regulators, and meters on gas equipment.
Features
Gases Detected
| Sensitivity | Low sensitivity mode: 50 ppm methane, High sensitivity mode: 20 ppm methane |
| Response Time | 1 Second |
| Leak Indicators | Visual (red/green LED) and audible (via internal speaker) |
| Automatic Background Adjustment | Yes |
| Power | 4x AA batteries |
| Run Time | 14 hours typical (alkaline batteries) |
| Size (H x W x D) | Unit: 6 x 2 x 1.5 in. (15.3 x 5 x 3.8 cm), Probe: 12in. (30.5cm) |
| Weight | 6 oz (170 g) with batteries |
| Sensor Life | 5 Years |
| Operating Conditions | 32 to 104°F (0 to 40°C), 15 to 70% RH (non-condensing), 1 ATM |
| Warm-up Time | 1 Minute |
| Approvals | CE mark - UL 913 Class 1, Division 1, Groups A, B, C & D |
