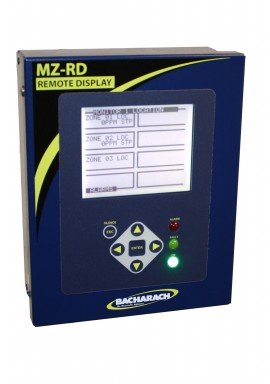

Provides remote programming, interrogation and display functionality to support Bacharach’s gas monitors. The system design supports compliance to ANSI/BSR ASHRAE 15-2007 and ASHRAE Safety Code 34-2007.
Provides remote programming, interrogation and display functionality to support Bacharach’s gas monitors. The system design supports compliance to ANSI/BSR ASHRAE 15-2007 and ASHRAE Safety Code 34-2007.
Features
| Inputs | Accepts inputs from up to four gas monitors. It offers a wide variety of displays and can fully program any associated monitor |
| Display | Backlit LCD |
| Data Logging | The user may view a graphical display of the ppm trend for each |
| Power Indication | Green LED glows when AC power is applied |
| Alarm Indication | Red LED glows and alarm condition is displayed |
| Fault Indication | Yellow LED glows and fault condition is displayed |
| Power Safety Mode | Fully automatic system reset; all parameters maintained |
| Monitoring Distance | Up to 4500 feet (1372 m) from furthest gas monitor |
| Relays | Two SPDT programmable alarm contacts are provided rated 2A at 250VAC (inductive) and 5A at 250VAC (resistive) |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Ambient Humidity | 5 to 90% (Non-Condensing) |
| Size | 11 x 10 x 3" (27.9 x 25.4 x 7.6 cm) |
| Weight | 5 lbs. (2.3 kg) |
| AC Power | 100 to 240 VAC, 50/60 Hz, 20 W |
| Inputs | Accepts inputs from up to four gas monitors. It offers a wide variety of displays and can fully program any associated monitor |
| Display | Backlit LCD |
| Data Logging | The user may view a graphical display of the ppm trend for each |
| Power Indication | Green LED glows when AC power is applied |
| Alarm Indication | Red LED glows and alarm condition is displayed |
| Fault Indication | Yellow LED glows and fault condition is displayed |
| Power Safety Mode | Fully automatic system reset; all parameters maintained |
| Monitoring Distance | Up to 4500 feet (1372 m) from furthest gas monitor |
| Relays | Two SPDT programmable alarm contacts are provided rated 2A at 250VAC (inductive) and 5A at 250VAC (resistive) |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Ambient Humidity | 5 to 90% (Non-Condensing) |
| Size | 11 x 10 x 3" (27.9 x 25.4 x 7.6 cm) |
| Weight | 5 lbs. (2.3 kg) |
| AC Power | 100 to 240 VAC, 50/60 Hz, 20 W |
