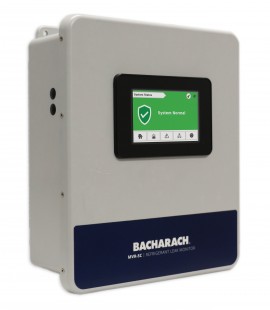

Bacharach MVR-SC Controller, 24 V DC, -4 to 131°F

Model: MVR-SC

The controller provides centralized monitoring and alarming for multi-occupant applications utilizing the refrigerant leak detector. It monitors all connected gas detectors for alarm and fault conditions and provides alerts via the integrated color touchscreen display, integrated buzzer, and onboard relay outputs.

The controller provides centralized monitoring and alarming for multi-occupant applications utilizing the refrigerant leak detector. It monitors all connected gas detectors for alarm and fault conditions and provides alerts via the integrated color touchscreen display, integrated buzzer, and onboard relay outputs.

Sale Price $4078.80 USD
Regular Price $4532.00 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

Bacharach 1100-2172 Ethernet Switch, 8-port, DIN-rail-

Bacharach 1100-2172 Ethernet Switch, 8-port, DIN-rail

1100-2172

Bacharach 1100-2193 Modbus Cable, 1000'-

Bacharach 1100-2193 Modbus Cable, 1000'

1100-2193

Bacharach MVR-SC Offers

Features

  • Centralized monitoring for multi-occupant applications utilizing the Refrigerant Gas Detector
  • At-a-glance visualization of whole system alarm, fault, or connectivity status
  • Continuously monitors up to 100 connected devices for alarm and fault conditions, ensuring and warning in case of any disconnect
  • Rolling event log of 100 most recent events (alarms, faults, connectivity, etc.) saved to SD card
  • 1 Alarm Relay; 1 Fault Relay; automatic system action to be taken for fault or alarm condition via built-in relays
  • Self diagnostics and simple field calibration for easy maintenance
  • Commissioning via dynamic device pairing and remote Modbus auto-assign save

Applications

  • Leak Detection

Bacharach MVR-SC Specifications

Housing Fiberglass Reinforced Polyester, Wall Mount, Single-door
Display Type Color Touch Display, Resistive Analog, TFT
Display Viewing Size 5 inch, 800 × 480 pixels
Audible Alarm Integrated
Relay Outputs 2 (Fault, Alarm)
Maximum Devices 100 × MVR-300 VRF refrigerant leak detectors
15 × MVR-300 VRF refrigerant leak detectors / Gateway
7 × Gateways / MVR-SC refrigerant leak monitor
Memory Storage microSD Card and USB 2.0
Operating Voltage 24 V DC
Operating Temperature -4 to 131°F (-20 to 55°C)
Dimensions 13.56 × 11.43 × 5.46" (344 × 291 × 139 mm)
Click here for complete specifications on the Bacharach MVR-SC

What's included with the Bacharach MVR-SC

  • Bacharach MVR-SC Controller, 24 V DC, -4 to 131°F

Click on a category to view a selection of compatible accessories with the Bacharach MVR-SC Controller, 24 V DC, -4 to 131°F.

Bacharach 1100-2172 Ethernet Switch, 8-port, DIN-rail 1100-2172
The ethernet network switch provides connectivity between the controller for refrigerant leak detection and the individual Modbus gateways. It connects up to 8 individual gateways.



Bacharach 1100-2193 Modbus Cable, 1000' 1100-2193
The Modbus cable is a 1000' (304.8 m) spool of industrial-grade cable. It works with the MVR-SC controller for refrigerant leak detection.
