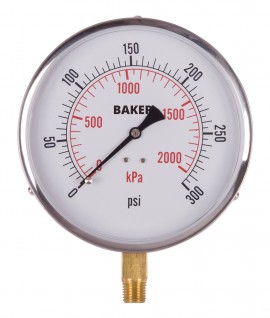

Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Model: 421AVND-300 | UPC: 800837025173

Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing-

Image is for reference only, refer to product info for complete details.

Downloads:

More Baker Products

Ask an Expert

Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Model: 421AVND-300 | UPC: 800837025173

This pressure gauge has a 4.5" diameter dial and is corrosive resistant with its stainless steel case and ring. It measures 0-300 psi/0-2100 kPa.

This pressure gauge has a 4.5" diameter dial and is corrosive resistant with its stainless steel case and ring. It measures 0-300 psi/0-2100 kPa.

Sale Price $35.10 USD
Regular Price $39.00 USD
Availability 12 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 421AVND-300 Series Pressure Gauge

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 421AVND-300 Series Pressure Gauge

Baker 421AVND-300 Offers

Features

  • Dual English/metric scales (psi/kPa)
  • Corrosion resistant stainless steel case and ring, plastic lens
  • Soft soldered phosphor bronze tube with brass socket
  • Phosphor bronze movement is recommended for general use
  • White background with bold black and red numerals and graduations, 270° arc and balanced adjustable black pointer
  • Suitable for steam, water, air, oil, gas or any medium not corrosive to copper alloys

Applications

  • Leak Detection
  • Process Monitoring
  • Production Line Testing
  • Laboratories
  • Steam
  • Water
  • Air
  • Oil
  • Gas

Baker 421AVND-300 Specifications

Dial Diameter 4½"
Pressure Range 0-300 psi/0-2100 kPa
Accuracy ±1% accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 50 PSI
Minor Divisions 5 PSI
Click here for complete specifications on the Baker 421AVND-300

What's included with the Baker 421AVND-300

  • Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Ask a question about Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Customer Reviews for the Baker 421AVND-300

Baker 421AVND-300 Offers

Features

  • Dual English/metric scales (psi/kPa)
  • Corrosion resistant stainless steel case and ring, plastic lens
  • Soft soldered phosphor bronze tube with brass socket
  • Phosphor bronze movement is recommended for general use
  • White background with bold black and red numerals and graduations, 270° arc and balanced adjustable black pointer
  • Suitable for steam, water, air, oil, gas or any medium not corrosive to copper alloys

Applications

  • Leak Detection
  • Process Monitoring
  • Production Line Testing
  • Laboratories
  • Steam
  • Water
  • Air
  • Oil
  • Gas
Show More...

Baker 421AVND-300 Specifications

Dial Diameter 4½"
Pressure Range 0-300 psi/0-2100 kPa
Accuracy ±1% accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 50 PSI
Minor Divisions 5 PSI
Click here for complete specifications on the Baker 421AVND-300

What's included with the Baker 421AVND-300

  • Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Ask a question about Baker 421AVND Series Pressure Gauge, 0 to 300 psi/0 to 2100 kPa, 4.5" dial, ¼" NPT bottom, SS housing

Customer Reviews for the Baker 421AVND-300
