Image is for reference only, refer to product info for complete details.
Displays real-time pressure with short response times and excellent long-term stability. The all Stainless Steel wetted parts make these gauges suitable for a wide variety of industrial liquids and gaseous mediums.
Displays real-time pressure with short response times and excellent long-term stability. The all Stainless Steel wetted parts make these gauges suitable for a wide variety of industrial liquids and gaseous mediums.

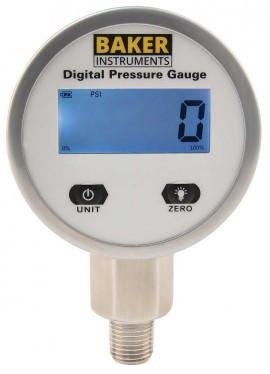

This digital pressure gauge with integral bar graph features 1% accuracy, backlighting for easy reading and 7 selectable engineering units allowing one gauge to be used in a variety of pressure applications.
Features
Applications
| Measurements | |
| Measuring Ranges | 0-30.0 psi 0-2.109 kgf/cm² 0-61.1 inHg 0-206.8 kPa 0-831 in w.c. 0-2068 mbar 0-0.206 MPa |
| Resolution | 0.1 psi 0.001 kgf/cm² 0.1 inHg 0.1 kPa 1 in w.c. 1 mbar 0.001 Mpa |
| Accuracy | 1% F.S. |
| Long-term Stability | 0.5% F.S./Year |
| Sampling Rate | 3x/Sec |
| Overload Capacity | 150% |
| Medium and Materials | |
| Service | Liquids and Compatible gases |
| Wetted Materials | 304 SS |
| Housing Materials | 304 SS |
| General Specifications | |
| Process Connection | 1/4" male NPT |
| Display | 4-digit LCD |
| Backlit Display | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AAA Batteries |
| Battery Life | 12-18 months |
| Product Certifications | IP64 |
| Electromagnetic Compatibility | EN61326 |
| Operating Temperature | 23 to 104°F (-5 to 40°C) |
| Dimensions | 2.56" outside diameter x 1.50" deep |
| Weight | 8.82oz (250g) |
Click on a category to view a selection of compatible accessories with the Baker B50000 Series Pressure Gauge, 0 to 30 psi, ¼" NPT bottom, SS housing.
