Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Model: LF45-3000P-1/4 | UPC: 800837026736

Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case-

Image is for reference only, refer to product info for complete details.

Downloads:

More Baker Products

Ask an Expert

Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Model: LF45-3000P-1/4 | UPC: 800837026736

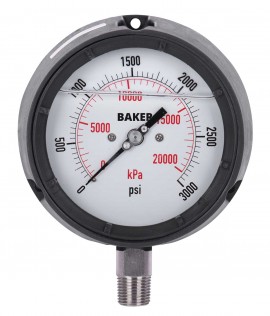

This pressure gauge features a 4.5" diameter dial with a black impact resistant phenolic case. Features a stainless steel tube and socket. 0-3000 psi/0-21,000 kPa.

This pressure gauge features a 4.5" diameter dial with a black impact resistant phenolic case. Features a stainless steel tube and socket. 0-3000 psi/0-21,000 kPa.

Sale Price $143.10 USD
Regular Price $159.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your LF45-3000P-1/4 Series Liquid Filled Pressure Gauge

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your LF45-3000P-1/4 Series Liquid Filled Pressure Gauge

Baker LF45-3000P-1/4 Offers

Features

  • Black, impact resistant phenolic case
  • 316 stainless steel bourdon tube and socket
  • Shatterproof glass lens
  • Micrometer adjustable pointer
  • Transient over-pressure limit: 30%
  • Silicone fluid filled and rated for -50 to 170°F
  • Integral back flange with safety blowout backplate
Applications

Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories

Baker LF45-3000P-1/4 Specifications

Dial Diameter 4½"
Pressure Range 0-3000 psi/0-21,000 kPa
Accuracy ±0.5% F.S.accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 500 psi
Minor Divisions 50 psi
Click here for complete specifications on the Baker LF45-3000P-1/4

What's included with the Baker LF45-3000P-1/4

  • Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Ask a question about Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Customer Reviews for the Baker LF45-3000P-1/4

Baker LF45-3000P-1/4 Offers

Features

  • Black, impact resistant phenolic case
  • 316 stainless steel bourdon tube and socket
  • Shatterproof glass lens
  • Micrometer adjustable pointer
  • Transient over-pressure limit: 30%
  • Silicone fluid filled and rated for -50 to 170°F
  • Integral back flange with safety blowout backplate
Applications

Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories

Show More...

Baker LF45-3000P-1/4 Specifications

Dial Diameter 4½"
Pressure Range 0-3000 psi/0-21,000 kPa
Accuracy ±0.5% F.S.accuracy
Connection 1/4" NPT Bottom Mount
Dial Type Analogue
Figure Intervals 500 psi
Minor Divisions 50 psi
Click here for complete specifications on the Baker LF45-3000P-1/4

What's included with the Baker LF45-3000P-1/4

  • Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Ask a question about Baker LF45 Series Liquid Filled Pressure Gauge, 0 to 3000 psi/0 to 21,000 kPa, 4.5" dial, ¼" NPT bottom, impact resistant phenolic case

Customer Reviews for the Baker LF45-3000P-1/4
