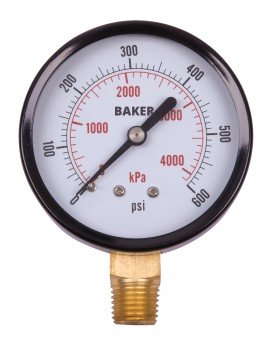

Image is for reference only, refer to product info for complete details.
This pressure gauge features a 2.5" diameter dial, acrylic lens and is corrosion resistant with it's stainless steel case and ring. 0-600 psi/0-4200 kPa
This pressure gauge features a 2.5" diameter dial, acrylic lens and is corrosion resistant with it's stainless steel case and ring. 0-600 psi/0-4200 kPa
Features
Ideal for the following applications: Process Monitoring, Production Line Testing, Laboratories.
| Dial Diameter | 2½" |
| Pressure Range | 0-600 psi/0-4200 kPa |
| Accuracy ASME Grade B accuracy | ±3% first 3rd of scale, ±2% middle 3rd of scale, and ±3% last 3rd of scale |
| Connection | 1/4" NPT Bottom Mount |
| Dial Type | Analogue |
| Figure Intervals | 100 psi |
| Minor Divisions | 10 psi |
| Dial Diameter | 2½" |
| Pressure Range | 0-600 psi/0-4200 kPa |
| Accuracy ASME Grade B accuracy | ±3% first 3rd of scale, ±2% middle 3rd of scale, and ±3% last 3rd of scale |
| Connection | 1/4" NPT Bottom Mount |
| Dial Type | Analogue |
| Figure Intervals | 100 psi |
| Minor Divisions | 10 psi |
