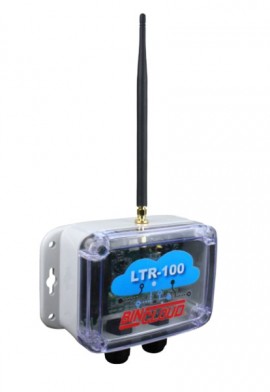

BinMaster 530-5180 LTR 100 Long Range Transceiver, 4 to 20 mA

Model: 530-5180

Using long-range radio technology, this transceiver is a wireless device used to connect sensors with a 2 or 4 wire to a 4 to 20 mA output to a BinCloud Gateway, transmitting 4 to 20 mA sensor data over distances up to one-mile line-of-sight, eliminating the need to run wiring to the gateway.

Using long-range radio technology, this transceiver is a wireless device used to connect sensors with a 2 or 4 wire to a 4 to 20 mA output to a BinCloud Gateway, transmitting 4 to 20 mA sensor data over distances up to one-mile line-of-sight, eliminating the need to run wiring to the gateway.

Your Price $409.00 USD
Availability 2 to 3 Weeks
Quantity

BinMaster 530-5180 Offers

Features

  • LoRa radio uplink compatible with US or EU radio frequency bands
  • Compatible with BinMaster and other brands of sensor with 4 to 20 mA output
  • Eliminates need for running long spans of wire to BinCloud gateway
  • LoRa transceiver sends data at distances up to one-mile line-of-sight
  • Affordable, easy to install, and connects sensors to network
  • Can accept one Modbus sensor network input

Applications

  • Connects BinMaster Modbus-capable sensors or any sensor with a 4-wire 4-20 mA output to a BinCloud gateway
  • Loop power supply for CNCR or other sensors that require 24 V DC less than 0.42 A

BinMaster 530-5180 Specifications

AC Line Voltage: 80 to 305 V AC 50/60 Hz
Current: 250 mA maximum
24 V DC Input Voltage: 21.6 to 26.4 V DC
Input Current: 320 mA maximum
Output Current: 110 mA maximum each port
Temperature Storage: -40 to 185°F (-40 to 85°C)
Operating: -40 to 167°F (-40 to 75°C)
(no load on 24 V DC outputs) -40 to 140°F (-40 to 60 °C)
(maximum load on 24 V DC outputs)
Enclosure Light gray polycarbonate
Ingress Protection Rating NEMA Type 4X
Dimensions (without antenna) 6.75 x 4.13 x 2.44" (171 x 105 x 62 mm)
Click here for complete specifications on the BinMaster 530-5180

What's included with the BinMaster 530-5180

  • BinMaster 530-5180 LTR 100 Long Range Transceiver, 4 to 20 mA
