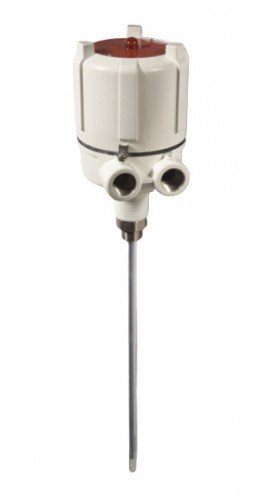

Durable construction that ensures long service life, this CSA Class II capacitance sensor is built for high vibration, temps, or extreme conditions. Time delay is adjustable up to 10 seconds to prevent false alarms and can be installed up to 75 feet from the sensing probe.
Durable construction that ensures long service life, this CSA Class II capacitance sensor is built for high vibration, temps, or extreme conditions. Time delay is adjustable up to 10 seconds to prevent false alarms and can be installed up to 75 feet from the sensing probe.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
Applications
| Means of Measurement | Capacitance Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 24 to 240 V AC/V DC Universal |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -20 to 145°F (-28 to 62°C) Process: Up to 145°F (62°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure | Type: NEMA 4X, NEMA 5, NEMA 7, NEMA 9, NEMA 12 Material: Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
| Means of Measurement | Capacitance Measurement Type: Point Level |
| Medium | Solids |
| Voltage | 24 to 240 V AC/V DC Universal |
| Outputs | Relay DPDT 10 Amp - 250 V AC maximum |
| Temperature | Ambient: -20 to 145°F (-28 to 62°C) Process: Up to 145°F (62°C) |
| Approvals | CSA Class II, Groups E, F & G |
| Enclosure | Type: NEMA 4X, NEMA 5, NEMA 7, NEMA 9, NEMA 12 Material: Die cast aluminum |
| Mounting | 1.25" NPT |
| Conduit Entry | 0.75" NPT |
